SIEVE SEGREGATION TEST SET - IS 1199 (Part 6)
Model Number : CT-SCC-007
Consist of perforated plate sieve with square holes of 5 mm, frame dia 300 mm and height of about 40 mm. With Pan of the same dia and depth to retain the materials passing through the sieve. The fitting of Pan and sieve will be such that, the sieve can be removed smoothly without forcing extra material passing through sieve. The collecting bucket made of Mild steel, having ID of about 300 mm and capacity of about 10-12 ltrs. with suitable lid. The Electronic Balance will be with digital display having 10 kg capacity with 0.5 gm accuracy. The balance will have tare facility and auto zero tracking.

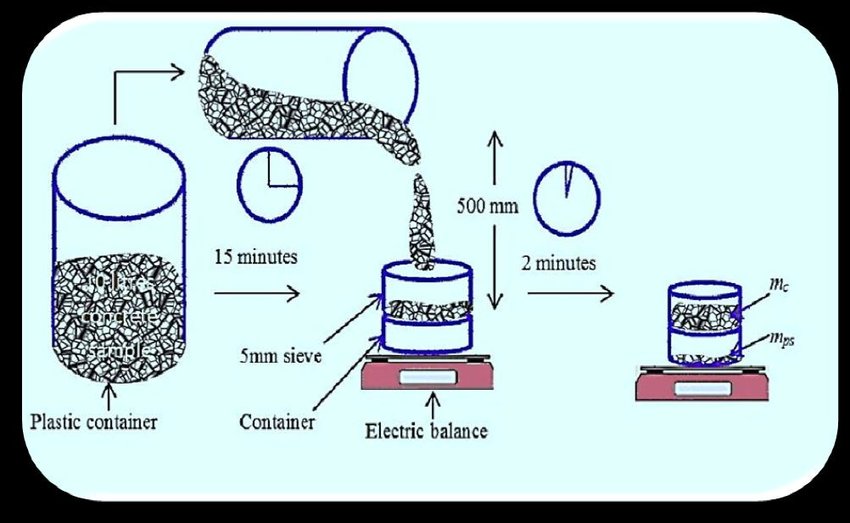

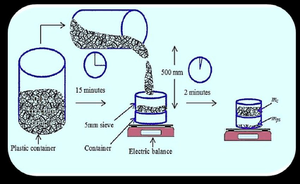

Purpose of the Test
The primary purpose of the Sieve Segregation Test is to assess the stability of SCC, particularly:
Segregation Resistance: To ensure that the coarse aggregate does not separate from the mix, which could weaken the structure.
Uniformity: To verify that the concrete mix remains homogenous, ensuring consistent strength and durability.
Description
Consist of perforated plate sieve with square holes of 5 mm, frame dia 300 mm and height of about 40 mm. With Pan of the same dia and depth to retain the materials passing through the sieve. The fitting of Pan and sieve will be such that, the sieve can be removed smoothly without forcing extra material passing through sieve. The collecting bucket made of Mild steel, having ID of about 300 mm and capacity of about 10-12 ltrs. with suitable lid. The Electronic Balance will be with digital display having 10 kg capacity with 0.5 gm accuracy. The balance will have tare facility and auto zero tracking.
As per IS 1199 (Part 6) : 2018, EN 12350-11: Testing fresh concrete – Part 11: EFNARC Guidelines for Self-Compacting Concrete.
