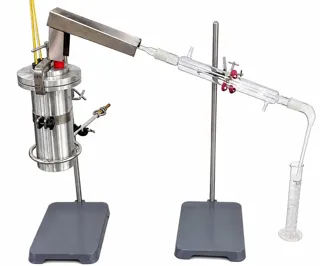

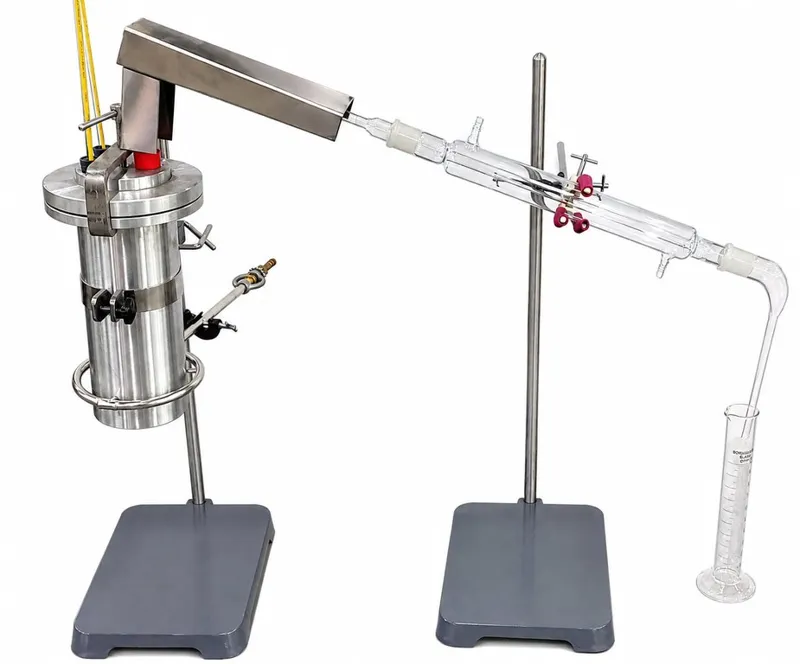

APPARATUS FOR DISTILLATION OF EMULSIFIED ASPHALT - (WITH ELECTRIC BURNER) - (ASTM D244, ASTM D6997) - WITH ACCESSORIES

Complies with following International Standards:

ASTM 244, ASTM D6997, AASTHO T59, IS 8887

Scope:

Use of this set will allow the user to accurately determine the representative portion of residue in emulsified asphalts. Used to examine the asphalt emulsions composed principally of a semi-solid or liquid asphaltic base, water and an emulsified agent.

Consists of following parts and accessories:

1. Electric burner
2. Aluminum alloy still
3. A 12 mm metal connecting tube with tin shield with water-cooled condenser
4. Electric Bunsen Burner
5. Metal jacket (Tube shield)
6. Adapters and Holders
7. Crow receiver
8. Metal base supports
9. Graduated cylinder 100 ml capacity with graduation interval
10. ASTM 7C Glass Thermometer - 0°C / 400°C
