SAYBOLT VISCOMETER-WITH FOUR SAYBOLT TUBES

Complies with ASTM D 88 / IS:3117-2019

The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures. The time it takes for a 60 ml sample to flow through a tube with a specified diameter (Furol (3.150 mm) or Universal (1.765 mm) ) is measured and reported in seconds. The viscometer can be used for temperatures between 25°C and 50°C. The viscometer includes Waterbath, Motorized Stirrer, Electric Heater with Digital Temp. Controller with control accuracy of ± 0.1°C. (The room temp. must be @ 20-21°C to achieve control accuracy)

Construction Details:

1. The apparatus consists of stainless steel bath with two sample cups
2. The bath has a lid which contains a thermometer socket and a straight heater.
3. Temperature is controlled by PID Digital Temperature indicator cum controller
4. Stirring is done by FHP motorized stirrer.
5. A thermometer can be inserted into the cup cover to cross check the Digital controller.
6. Four jets - Two Universal and Two Furol can be screwed to the cup by a handle.
7. Entire assembly works on 220 Volt, 50 hz, Single phase, AC Supply
8. Universal Orifice: 2 pc
9. Furol Orific : 2 pc
10. Thermometer Support: 4 pc
11. Tube wrench : 1 set
12. Saybolt Viscosity Flask, Glass, 60 ml: 4 pc
13. Stopper : 4 pcs
14. Operation Instruction Manual & Conformity Certificate : 1 Pc

The Following accessories are available at extra cost

1. ASTM/IP Glass Thermometers
2. Digital Stop Watch (Essential accessory)

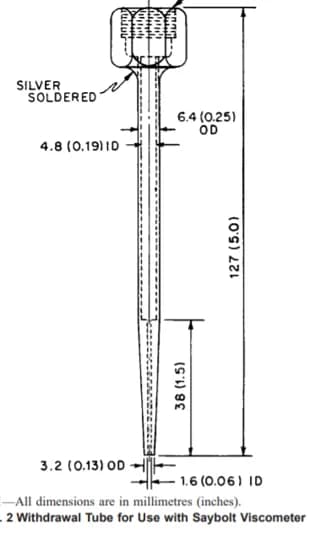

3. Withdrawal Tube
4. Strainer for Filtering
