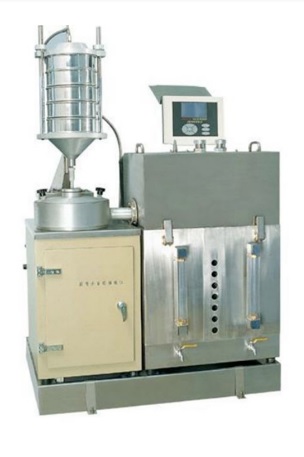

AUTOMATIC CENTRIFUGAL EXTRACTOR -
Model Number : EIE-0722A
The automatic Bitumen Extractor is used for the separation and extraction of bitumen by use of perchloroethylene or trichloroethylene solvents and sieving, for the separation of filler by centrifuge action and for the recovery of solvent material. The complete cycle is carried out automatically. As per ASTM D2172 and EN 12697-1
Automatic Extraction Equipment: Improves precision and efficiency by performing continuous washing and centrifugation to extract bitumen from asphalt mixtures.
Sieving Process: Ensures the aggregate is thoroughly cleaned of bitumen and provides a gradation curve for quality control.
Solvent Recovery: Minimizes environmental impact and operational costs by reclaiming the solvent used during the extraction process.
Fully automatic testing cycle:
- Sieving
- Centrifuge extraction
- Solvent recovery
The basic automatic bitumen extractor machine comprises:
- A sieving unit with solvent spraying nozzle to separate and wash out the asphalt sample capacity 7 sieves 200 mm dia.
- A filter less centrifuge to separate the filler from the solvent and bitumen solution.
- A solvent recovery unit to recover the solvent.
The apparatus is supplied complete with a separate electric control panel and three spare cups for the extraction centrifuge
| Capacity | 1000g~1500g |
|---|---|
| Extracting Precision | ≤0.1% |
| Extracting Time | (25~45)minutes per test |
| Centrifuging Speed | 12000 RPM |
| Working Environment | (5~40)°C,RH<80% |
| Power Supply | 440V±10%, 50 Hz |
| Maximum Power Consumption | About 5kw |
| Cooling Water | Pressure : ≮2 bar, temperature : ≯1 2°C |
| Net Weight | About 300kg |
| Dimensions. | 1400mm (L) X 800mm (W) X 1600mm (H) |
