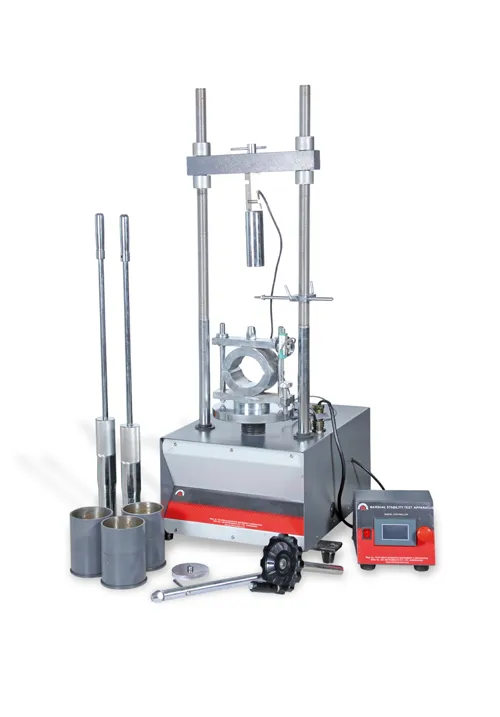

PAVEMENT INTENSITY TEST APPARATUS
Digital type with load cells LVDT with digital indicator.
Specification:
It is a multifunctional testing instrument for the material of road base and pavement. This can be used with many kinds of testing accessories to test the compressive strength, indirect intensity test and bearing ratio of soil and pavement material. It can also be used to test the thermal stability and Marshall test of bituminous material.
The machine has a sturdy frame having two chrome-plated pillars and crosshead to work up to 100 kN axial load having two speeds of loading to perform various tests such as bearing ratio, Marshall lest. The speed can be adjusted with the help of a mechanical lever fitted on a main frame. It can be run on forward and reverse mode also.
| Capacity | 100kN |
|---|---|
| Max Vertical Distance b/w the Plates | 200mm |
| Allowed Overload | 30% |
| Speed of Piston | High 50.8 mm/Min low 1 mm/Min |
