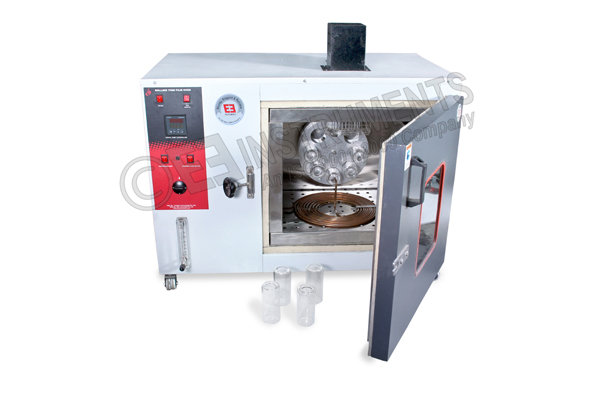

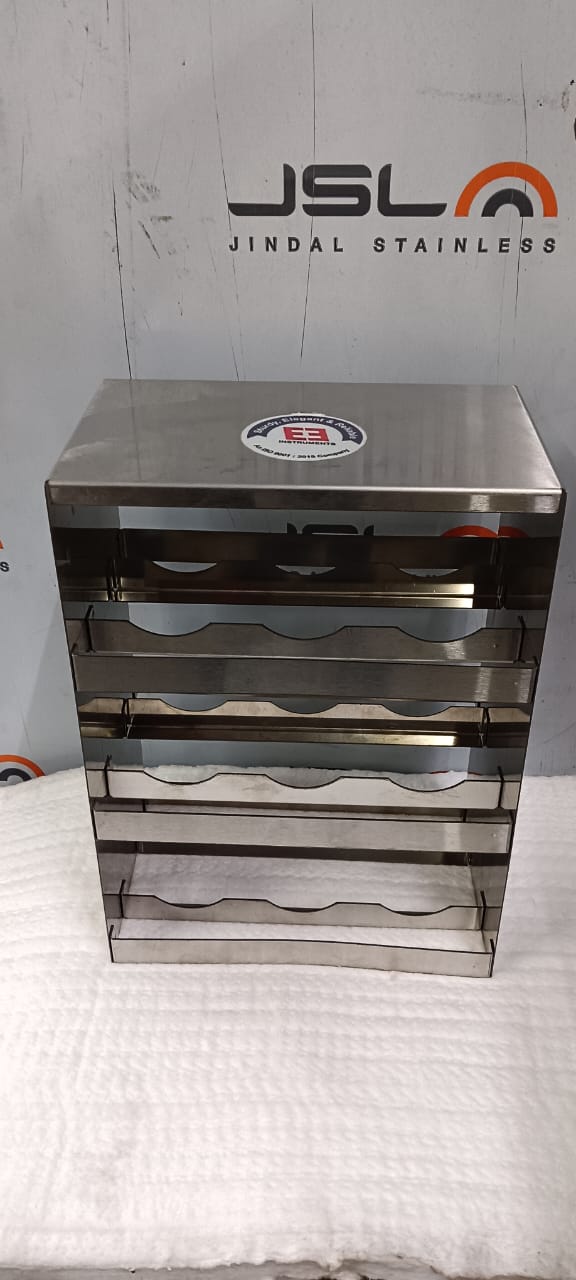

AUTOMATIC ROLLING THIN FILM OVEN - PROGRAMMABLE
Model Number : EIE-107-RTP
The Automatic Rolling Thin Film Oven is a precision laboratory device designed to evaluate the properties of bitumen and asphalt materials. It conforms to key standards including ASTM D2872, ASTM D6521, AASHTO T240, EN 12697-22, and ISO 4624. This oven offers a temperature range of 50-180°C with a control accuracy of ±1°C. It features programmable speed settings (5-60 rpm) and accommodates sample sizes ranging from 2 to 200 grams. Key safety features include over-temperature protection, automatic shut-off, and integrated control systems for temperature, speed, and timing. With Digital Flow meter and air flow regulator
The Rolling Thin Film Oven complies with international standards including ASTM D2872, AASHTO T240, CNR N.54, EN 12607-1, and IS 15799-2008. It is designed to determine the resistance of bituminous binders to hardening from heat and air through the Rolling Thin Film Oven Test. This unit simulates the short-term aging that occurs during the mixing of binders with aggregates and the finishing of bituminous layers.
Salient Features:
- Double-walled, electrically heated oven with high-density glass wool insulation.
- Over-temperature and door open automatic safety switches.
- High resistance glass door with an uninterrupted view of the interior.
- Armored heating resistance and a digital electronic thermo-regulator operating in PID mode.
- Rotating shelf with minimal air resistance, capable of holding up to eight sample containers.
- Equipped with a digital flow meter, air flow regulator, and cooling fan.
- Includes pilot lamps, a 2-meter cord, and power plug.
Details of Apparatus:
- Rotating Shelf: Metal vertical circular carriage with a diameter of 304.8 mm, rotating at 5-60 RPM, accommodating up to eight sample containers.
- Sample Containers: Heat-resistant glass with a 64 mm diameter and 139.7 mm depth.
- Thermometer: ASTM 13C thermometer with calibration traceability to National Standards (optional).
| Working size | 483 x 445 x 381mm ( W x D x H) |
|---|---|
| Volume | 82 Liters |
| Rating | 2.0 KW |
| Temperature Range | 50 °C - 300 °C |
| Temperature Control | Microprocessor based Auto-Tuning Digital PID temperature controller cum indicator |
| Temperature Display | LED Digital display |
| Temperature sensor | PT-100 sensor |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ± 1 °C or better |
| Shaft | Rotating Vertical Circular carriage for sample containers as mentioned in ASTM D2872 standard |
| Carriage Rotation | variable speed 5-60 rpm |
| Electric Motor | Of reputed make |
| Glass container | Clear, transparent, Heat resistant glass containers to be held in Circular carriage |
| No of glass containers | 08 Nos |
| Air jet orifice | 1.016 mm diameter |
| Copper tubing dimensions | 7.6 meter length and 8 mm outside diameter |
| Construction | Tripple walled construction |
| Exterior body | Made of mild steel material, which is powder coated in attractive shades |
| Inner chamber | Made of Stainless Steel S.S. 304 - mirror polished material. |
| Insulation | High density glass wool insulation - (2.5”) in all sides of chamber to offer minimum heat loss |
| Heating element | Heating elements placed at the bottom of the oven Floor as per ASTM D2872 |
| Blower | Suspended vertically from the ceiling of the oven for uniform heat distribution inside the working chamber |
| Door lock | Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism |
| Observation window | With two sheets of glass separated by an air space, 11” x 13” (H x W) |
| Ventilation | Adjustable air ventilation mounted at top and bottom for dissipation of expended volatile from specimen as per ASTM D2872 |
| Rate of air flow | Calibrated digital flow meter measuring range 0 - 4000 ml/min |
| Operation on | 230 volts, 50 hz, Single phase, AC Supply |
| Internal circuitry wires | As per CE Compliance |
| Design | CE CERTIFIED Design criteria |
| Overall Dimensions | 1160 X 700 X 960 MM |
| Weight (Approx.) | 112 kg |
