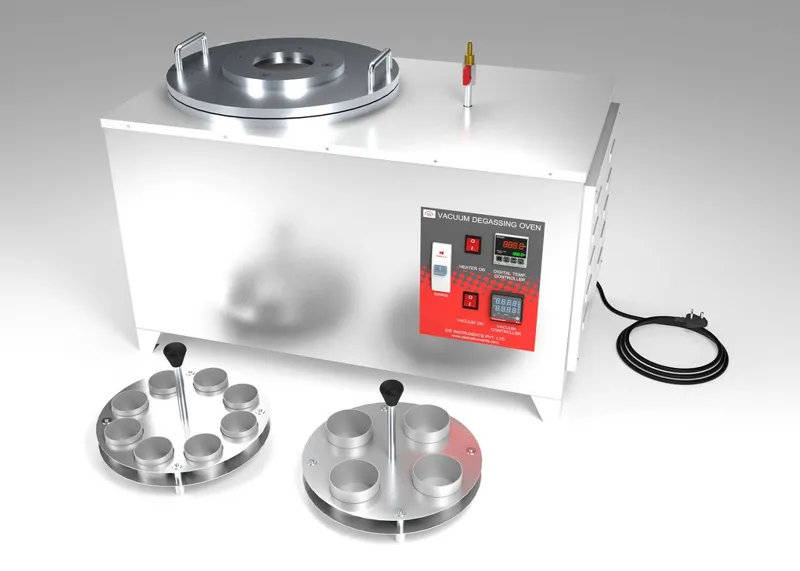

VACUUM DEGASSING OVEN
Model Number : EIE-VDO
The Vacuum Degassing Oven (VDO) from ATS has been designed to degas pressure aged binder samples to precisely and accurately meet AASHTO R28-06 and ASTM D6521-05 standards.
System features include :
- Compact Unit
- Stainless Steel Construction
- Lid to conserve space and access the stainless steel vacuum chamber
- Easily cleaned work surface on top of unit for preparing and unloading specimens
- Holds up to (8) specimen containers of 55 mm DIA x 35 mm Height
- Self-contained automatic vacuum system
- High Precision Controller featuring a digital display indicating temperature
- Audible and Visual alarm, indicating end of process
- Maintains temperature up to 170°C with an accuracy of ±5°C.
- Digital vacuum controller indicated in kPa or mmhg.
Includes :
- Specimen Containers-8 nos of 55 mm DIA x 35 mm Height
- Specimen Containers-4 nos of 70 mm DIA x 45 mm Height
| General | |
|---|---|
| Construction | Bench top unit with stainless steel construction |
| Specimen Capacity | 8 or 4 (Specimen Containers Included) |
| Front Panel Display | yes |
| Technical Specifications | |
| Operating Pressure | Adjustable from 15 KPA to Atmosphere |
| Temperature Range | 175ºC ± 5ºC |
| Temperature Control Resolution | 0.1ºC |
| Test Temperature Uniformity | ± 5ºC |
| Vacuum transmitter | 0-760 mm hg range |
| Vacuum controller | PID controller |
| Vacuum Indication | 15 kpa ± 1 kpa |
| Inlet | Internal vacuum pump |
| Requirements | |
| Power | 1500 watt |
| Power Requirements | 230 VAC, 1 Ph. 50 Hz |
| Weight (Approx.) | 68 |
| Overall Dimensions | 810 X 500 X 590 (L X W X H ) MM |
