FULLY AUTOMATIC COMPRESSION/FLEXURAL TESTING MACHINE - 100 KN/15 KN

FULLY AUTOMATIC COMPRESSION/FLEXURAL TESTING MACHINE - 100 KN/15 KN

Model Number : TM-042FA.100.1

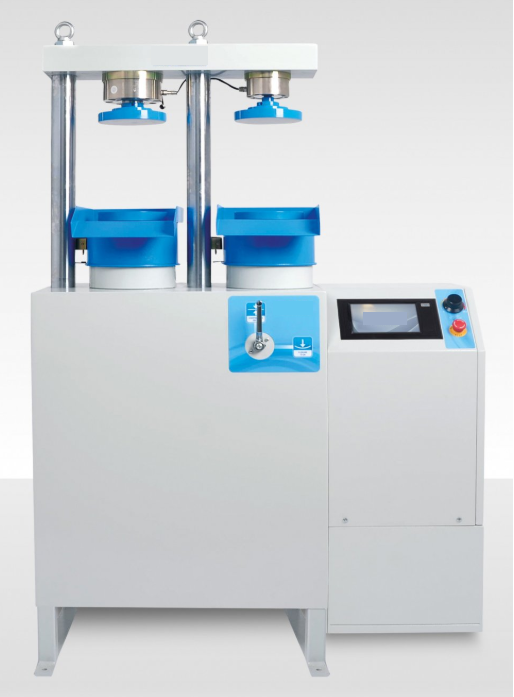

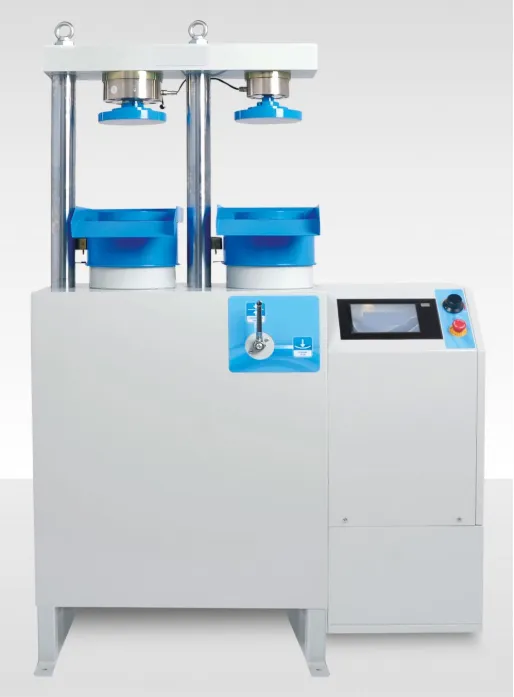

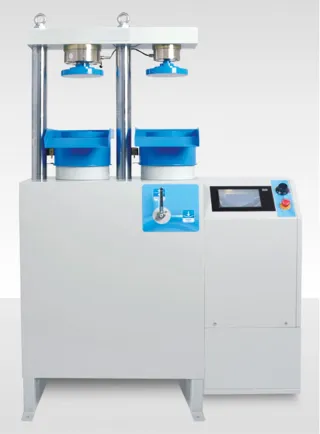

The EIE Automatic Cement Compression and Flexure Testing Machines are designed to simplify testing processes, ensuring accurate and efficient results. Their robust design, intuitive operation, and advanced safety features make them ideal for laboratories focused on high-quality testing of construction materials. Supplied complete with flexural and compression test jigs Note: We strongly recommend using a servo voltage stabilizer to protect the Compression Testing Machine from overvoltage. The machine incorporates sensitive electronic components. Operating it without a stabilizer may cause serious damage or breakdown, which will not be covered under warranty.”

The EIE Automatic Cement Compression and Flexure Testing Machines are engineered to deliver reliable and consistent testing of mortar samples. These machines conform to current international standards, including EN 196-1, 459-2, 1015-11, 13454-2, 13892-2; ASTM C109, C348, C349; and BS 4550-3.4, and are equipped with advanced technologies to meet diverse client requirements through suitable accessories.

Key Features

  1. Dual Testing Frames: Two-in-one compression and flexure testing capability with double-chamber frames.
  2. Automation: Fully automatic operation with closed-loop control for precise and repeatable results.
  3. Pace Rate Control: Adjustable pace rate from 50 N/sec (flexure) to 2.4 kN/sec (compression).
  4. Load Measurement Accuracy: Meets Class 1 (EN ISO 7500-1) and Class A (ASTM E74) standards for accuracy, starting from 1% of the machine’s load capacity (250 kN for compression and 15 kN for flexure).
  5. Software Integration: Optional computer control with comprehensive software for test management, reporting, and graphical analysis.
  6. Touch Control Unit: User-friendly touch screen interface for standalone operation.
  7. Automatic Processes: Rapid approach to testing position.
  8. Automatic adjustment to test speed after achieving 1% of load capacity.
  9. Automatic piston return post-testing.
  10. Automatic saving of test parameters and results.
  11. Calibration: Supplied with a factory calibration certificate for load measurement.
  12. Hydraulic System: Dual-stage hydraulic pump for rapid approach and precise control.

Operating Procedure

Preparation: Switch on the machine and position the specimen using the centering apparatus.

Parameter Setup:

  1. Set test parameters, including pace rate (required only when specimen type changes).
  2. Select the compression or flexure frame via the changeover valve.
  3. Testing: Press the START button on the control unit to initiate the test. The machine automatically:
  4. Performs rapid approach.
  5. Adjusts to the specified test speed.
  6. Stops upon specimen failure.
  7. Saves test parameters and results.

Control Unit and Software

Touch Control Unit

  1. Designed for seamless automatic testing of construction materials, including cement mortar, concrete, and masonry units.
  2. Intuitive menu-driven interface for easy parameter setup and operation.
  3. Real-time graphical displays:
  4. Load vs. Time
  5. Stress vs. Time
  6. Accessible front-panel touch screen for streamlined operation.

Software Features

  1. Automates compression, flexure, and splitting tensile strength tests.
  2. Enables detailed reporting and graphical output.
  3. Provides robust test management and data analysis capabilities.

Safety Features

  1. Overload Protection: Maximum pressure valves to prevent overloading.
  2. Piston Travel Limits: Limit switches to safeguard against overextension.
  3. Emergency Stop: Easily accessible emergency stop button.
  4. Software-Controlled Load Limits: Ensures safe operation.
  5. Safety Doors: Transparent, removable front and rear doors for operator safety.

Standard Accessories

  1. Compression and flexure jigs.
  2. Distance pieces.
  3. Removable front and rear safety doors.
  4. Factory calibration certificate.
