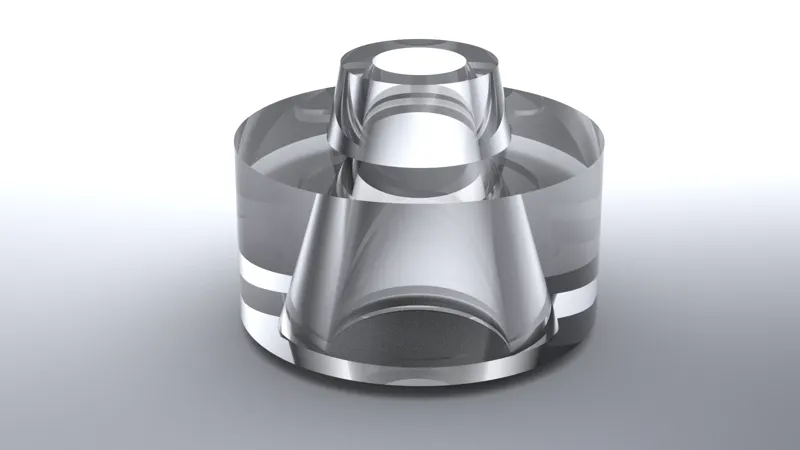

ACRYLIC - SLUMP TEST APPARATUS - MINI
Model Number : TM-165A
Kantro Mini-Slump Cone, The Kantro layout is widely accepted in research and laboratories to test the fluid flow and rheology of cement paste or mortar. Made of Acrylic, Dimensions of mini-slump apparatus 38 mm high with at the top diameters of 57 mm and 19 mm at the bottom. Base plate (Glass/acrylic) available at extra cost
ACRYLIC - SLUMP TEST APPARATUS - MINI
- Made of Acrylic
- The mini-slump test was used to find the spread of grout mixtures.
- Dimensions of mini-slump apparatus 57 mm high with at the top diameters of 19 mm and 38 mm at the bottom.

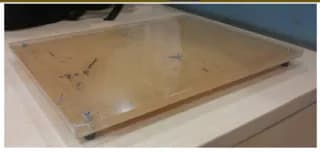

- It is placed on a flat acrylic or glass plate. (at extra cost)
- CBG mix is poured into a cone until it's full.
- Then the mixture is allowed to spread by removing the mini slump cone in vertical direction
- The spread diameters are measured and the average spread diameter is calculated.
