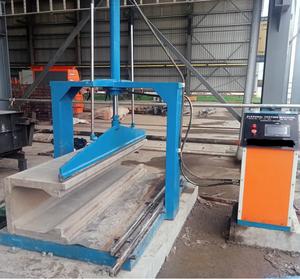

BENDING STRENGTH TEST APPARATUS - JIS A5372

BENDING STRENGTH TEST APPARATUS - JIS A5372

As per JIS A5372 to test the bending strength of concrete cable duct. Electro-hydraulic Design, quite and vibration free operation. PC connectivity with software available at extra cost. Detailed Specification as follows:

Compliance with following international standards:

 JIS A5372

Introduction:

Electro-hydraulic Design, quite and vibration free operation, Automatic Pace rate control @ 8 KN/min or 4 KN/min or 16 KN/min as per the requirement .

Capacity : 50 kN

Least Count : 0.001 kN

Accuracy : 0.2% of Full Scale

Salient Features:

  1. Standard Digital Model
  2. Suitable for BENDING STRENGTH Test of concrete duct cable and its cover or simiar application
  3. CONTROLS AUTOMATIC PACE RATE @ from 4 kN /min to 7 kN/min
  4. Direct Display of Load / Collapsing Force
  5. Selectable Test Units - Kg, KN
  6. Auto-stop upon completion of Test.
  7. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
  8. With embedded push buttons operation on Digital panel.
  9. INTEGRATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
  10. With 3 rollers 15 mm diameter
  11. With adjustable Test Span (for bending strength of duct cover)
  12. Cross head movement with the help of motor for testing of cable duct and duct cover.
  13. Piston stroke : 100 mm
  14. Ram diameter : 120 mm
  15. Complete Unit is powder coated in attractive shades
  16. Operation on 230 Volt, 50 Hz, Single Phase, AC Supply

Note : 3 KVA servo controlled stabilizer is MANDATORY.

All civil work has to be done by the purchaser. Client also have to arrange crane for the movement of the duct to the machine.
