BENDING STRENGTH TEST APARATUS - FOR BOX CULVERT

Introduction:

Electro-hydraulic Design, quite and vibration free operation, Automatic Pace rate control @ 1 KN/ sec or 10 KN/sec.

1. Capacity: Dual Range - 500 kN / 200 kN
2. Least Count: 0.1 kN
3. Controller: 7" Touch Screen, capable of computer connectivity
4. Ram Diameter: 170 mm
5. Piston Stroke: 150 mm
6. Piston-Cylinder Type: Double Acting

Test Specimen Size Range:

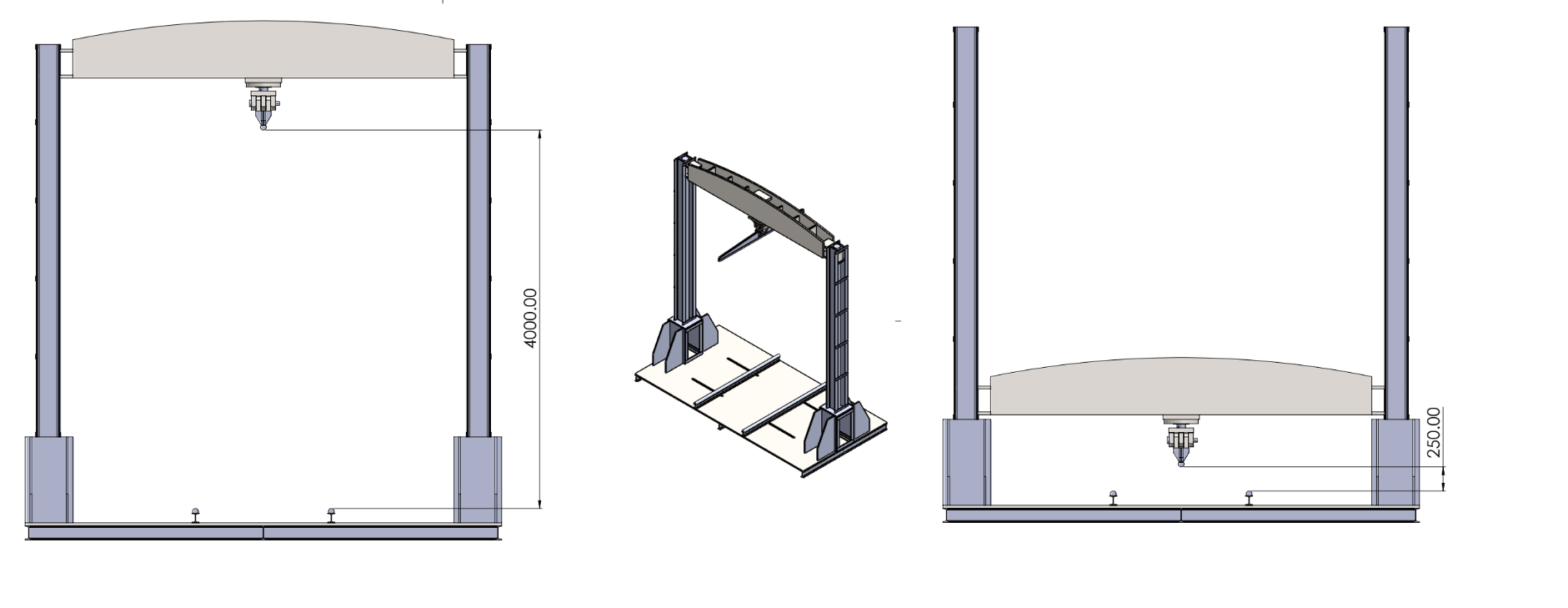

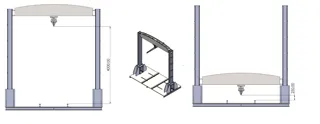

1. Maximum Specimen Size (mm): 4000 (H) x 4000 (W) x 2200 (D)
2. Minimum Specimen Size (mm): 300 (H) x 600 (W) x 600 (D)

Types of Tests Supported:

1. Three-Point Bending
2. Four-Point Bending
3. Cyclic Load Test

Additional Features:

1. Crosshead movement via motor
2. Operation Voltage: 220 Volts

Salient Features:

1. Standard Digital Model
2. Suitable for BENDING STRENGTH Test of Box culvert and allied concrete structures
3. CONTROLS AUTOMATIC PACE RATE @ from 1 kN /sec to 10 kN/sec
4. Direct Display of Load / Collapsing Force
5. Selectable Test Units - Kg, KN
6. Auto-stop upon completion of Test.
7. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
8. With embedded push buttons operation on Digital panel.
9. INTEGRATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
10. With adjustable Test Span
11. Cross head movement with the help of motor
12. Piston stroke : 150 mm
13. Ram diameter : 170 mm
14. Complete Unit is powder coated in attractive shades
15. Operation on 230 Volt, 50 Hz, Single Phase, AC Supply

Note : 3 KVA servo controlled stabilizer is MANDATORY.

All civil work has to be done by the purchaser. Client also have to arrange crane for the movement of the duct to the machine.
