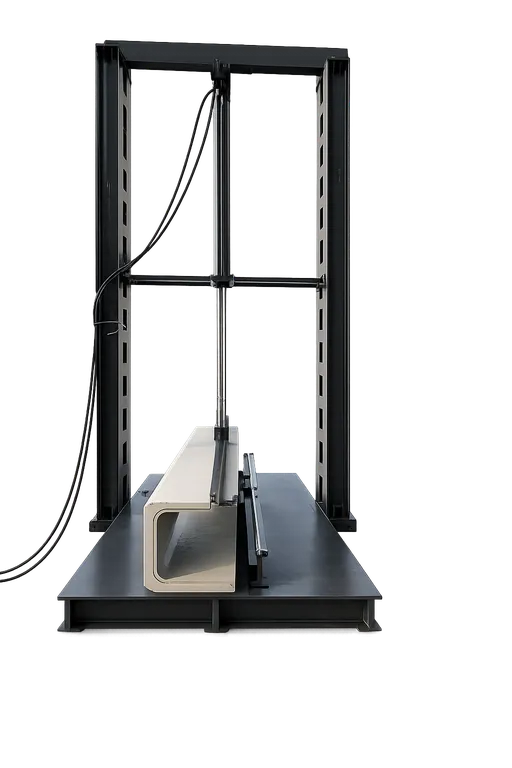

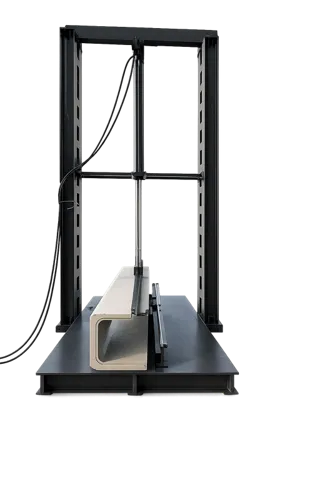

BENDING STRENGTH TEST APARATUS - FOR CABLE DUCT AND COVERS

Introduction:

Electro-hydraulic Design, quite and vibration free operation, Automatic Pace rate control @ 1 KN/ sec or 10 KN/sec. Satisfies the requirements of IS:5820, IS:516, IS:9399

Capacity    : 200 kN (100 KN or 500 kN also available)

Least Count : 0.001 kN

Accuracy    : 0.2% of Full Scale

Salient Features:

1. Standard Digital Model
2. Suitable for BENDING STRENGTH Test of concrete duct cable and its cover
3. CONTROLS AUTOMATIC PACE RATE @ from 1 kN /sec to 10 kN/sec
4. Direct Display of Load / Collapsing Force
5. Selectable Test Units - Kg, KN
6. Auto-stop upon completion of Test.
7. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
8. With embedded push buttons operation on Digital panel.
9. INTEGRATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
10. With 3 rollers 15 mm diameter
11. With adjustable Test Span (for bending strength of duct cover)
12. Cross head movement with the help of motor for testing of cable duct and duct cover.
13. Piston stroke : 100 mm
14. Ram diameter : 120 mm
15. Complete Unit is powder coated in attractive shades
16. Operation on 230 Volt, 50 Hz, Single Phase, AC Supply

Note : 3 KVA servo controlled stabilizer is MANDATORY. All civil work has to be done by the purchaser. Client also have to arrange crane for the movement of the duct to the machine.
