CO2 CURING CHAMBER FOR 10 SAMPLE OF 300 X 300 X 20 MM

Steam curing of concrete blocks is an energy extensive process and contributes to a significant portion of the block production cost. CO2 curing of concrete blocks consumes CO2, reduces energy consumption and produces dimensionally more stable products. This study investigated the strength development and weathering properties of steam- and CO2-cured full size lightweight concrete blocks.

► Full-size masonry concrete blocks were cured with CO2.

► The strength of CO2 cured blocks is similar to that of steam cured blocks.

► The strength of block continues to increase in a moist environment after CO2 curing.

► CO2 cured blocks still demonstrate lower drying shrinkage and water absorption than steam cured blocks.

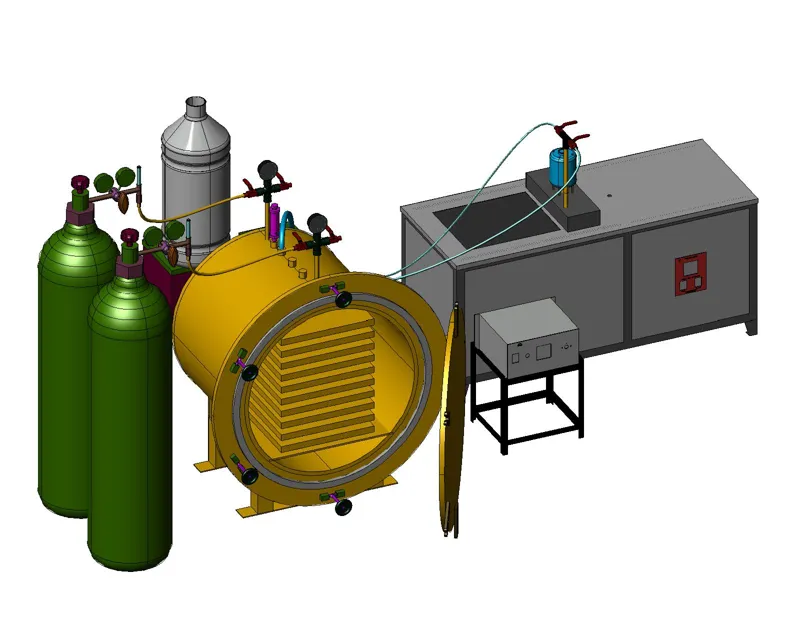

Instruments includes:

1.CO2 reactor-500 mm dia,500 mm length.

2.Reactor MOC-Mild steel material which can withstand high pressure capacity up to 7 bar. with Teflon coating inside the chamber.

3.Stainless Stand for 10 samples of 300 x 300 x 20 mm.

4.CO2 cylinder of 20-30 kgs approx. with pressure regulator

5.Nitrogen cylinder of 20-30 kgs approx. with pressure regulator

6.With high pressure safety cut off.

7.Tempreture and humidity sensor with indication for temperature and humidity value.

8.cooling coil for cooling water circulation inside the chamber

OPTIONAL ACCESORIES:(At extra cost)

1.LOW TEMPERATURE WATERBATH - +5°C TO 50°C - 20 LITERS CAPACITY @ RS.98,000/-

2.HUMIDIFIER-ULTRASONIC WITH HUMIDITY CONTROLLER-5 LPH @ RS.46,000/-

3.STEAM CURING BOILER TANK SYSTEM@RS.35000/-
