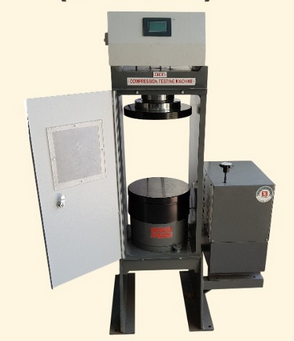

COLD CRUSHING STRENGTH APPARATUS - IS 1528 (PART IV)-

COLD CRUSHING STRENGTH APPARATUS - IS 1528 (PART IV)-

Model Number : TM-042AC.1000.0

Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Automatic pace rate control, auto stop and manual release on failure of test specimen. Further details as mentioned in Technical Part on following pages.The Machine is designed to satisfy the requirement of IS:1528(Part 4) The machine is capable of increasing the stress at a rate of 1.0 N/mm2/s, until the test piece is unable to support the load. Capacity 1000 KN, Least count 0.1 KN or 0.01 KN (at extra cost) Working on 230 V AC Single Phase,50 Hz.

PRINCIPLE

A test piece of known dimensions is subjected, under specified conditions, to a steadily increasing compressive load until it fails, that is when it cannot support a further increase in load. The cold compressive strength is calculated from the maximum load indicated at failure and the mean cross-sectional area over which the load is applied.

Compliance With Following International Standards:

As per IS IS 1528 (Part IV)/ASTM C133/ISO 10059-1/ ISO 8895/ EN 993-5/JIS R2206.

Automatic Test Execution:

Once the machine has been switched on, the specimen positioned and centered, the only required operations are

Set test parameters ‑ including load rate:

  1. Press the start button
  2. Tighten the pressure valve
  3. The machine automatically: starts the rapid approach; switches to the test speed once the specimen comes into contact with the upper platen; automatically stops the motor upon specimen failure
  4. Release the pressure valve
  5. The test execution conforming to Standards can be easily proved.
  6. Working on 240V, 50‑60Hz, single phase.
  7. Dual stage pump assuring fast piston approach and precise test execution
  8. Test execution conforming to IS IS 1528 (Part IV)/ASTM C133/ISO 10059-1/ ISO 8895/ EN 993-5/JIS R2206.
  9. Controllable pace rate from 1 KN/Sec to 10 KN/Sec.
  10. Auto stop after completion of each test.
  11. Soft platen‑to‑specimen contact and smooth load rate control from the very beginning of the ramp.

Frame:

  1. Four column high stiffness welded frame tested for stability.
  2. Heavy duty spherical seat , allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.
  3. Surface hardness of platen is 55 HRC, flatness tolerance 0.03 mm. Traceable certificate of surface hardness available on request.
  4. Piston travel limit switch (Extra cost)
  5. Emergency stop button

Salient fetchers of data manager PC software (Optional At Extra Cost.)

  1. Two way communication i.e machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
  2. Results directly saved in excel file
  3. Graph also saved in excel file
  4. Capable to save customer name, other details of cutomer, ageing of cube moulds, identification mark of the cube mould, date and time of testing
  5. Capable to print direct report from the computer
  6. Capable to select different test perameters like pace rate, sample size and area from the computer (software)

NOTE: It is essential to use the machine with 3 KVA servo stabilizer.
