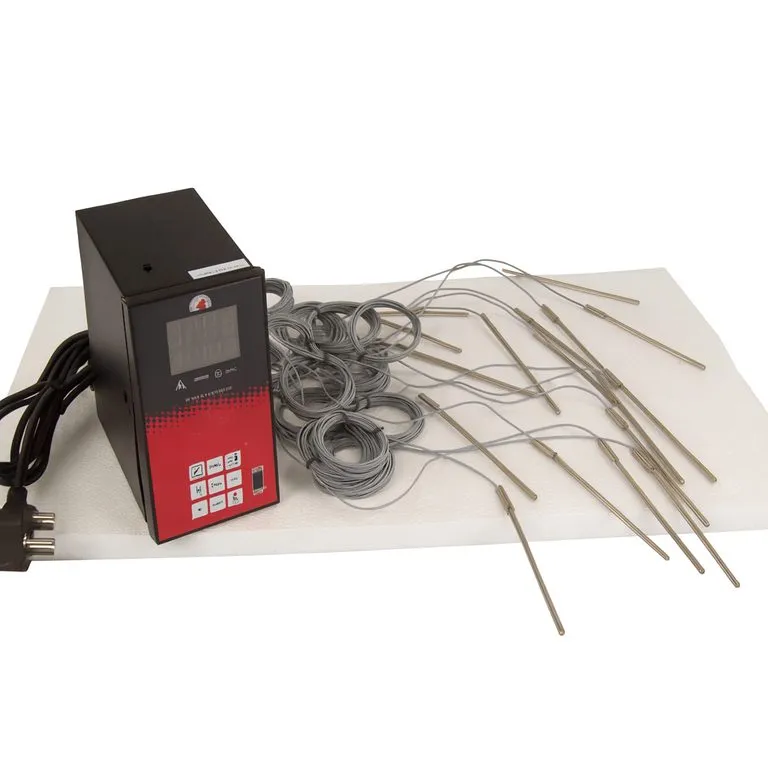

CONCRETE MATURITY METER - 16 CHANNEL
This is a temperature monitoring unit with temperature data logging system at user defined interval, Mostly required for mass concrete. It measures the temperature of concrete from the time of concrete casting, its precise temperature sensors are inserted inside the fresh concrete at the time of casting, and it continues to log the Temperature data till the heat of hydration completes. This practice provides procedure for estimating concrete strength by means of Maturity method. The maturity index is expressed either in terms of the Temperature and Strength Temp. sensors available at extra cost and quoted separately. One sensor required for each channel. Detailed specifications are as follow:
Details:
- Temperature-Time factor or in terms of equivalent age at a specified temperature. This practice requires establishing the strength-maturity relationship of the concrete mixture and recording the temperature history of the concrete for which strength is to be estimated The recording time interval is 30 minutes . Complying with various National and international standards like ASTM C1074
Features and specifications:
- Temperature sensing Range 0- 100°C with accuracy of ±1°C
- Low cost Sacrificial sensors , Measuring unit is re-usable.
- Automatic data logging with User defined time interval.
- Available in various number of Channels.
- Pen drive Connectivity for datalogging
- No complicated software for data accessing is required direct Pen drive plugging
- Date and time stamp for temperature values
- Working on 230 V AC single Phase
- With battery back up for 24 hrs in case of failure of power supply.
