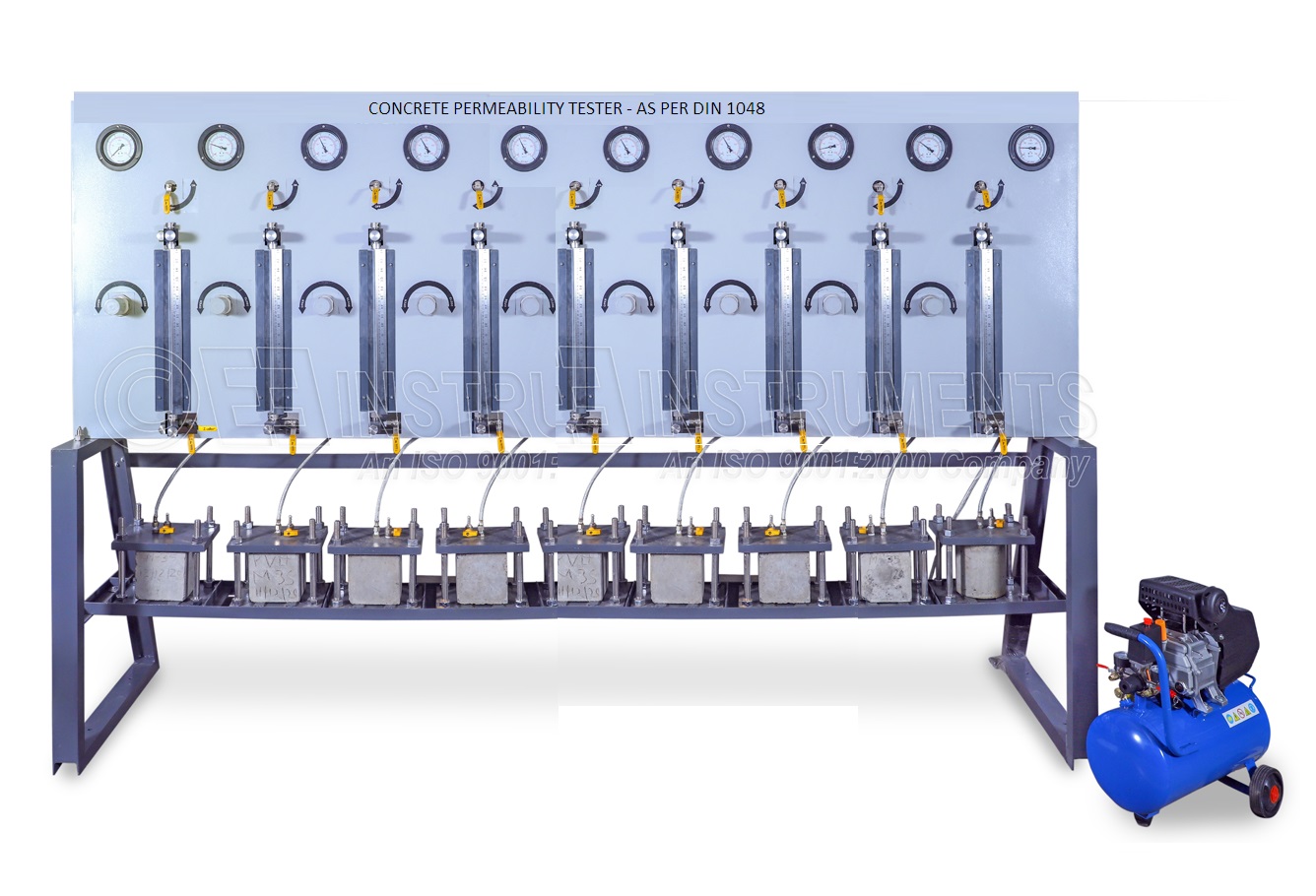

CONCRETE PERMEABILITY TESTER - AS PER DIN 1048 - 9 CELL - WITH AIR COMPRESSOR
Model Number : TM-139-D-9
Compliance Standards : IS 516 (Part 2/Sec1): 2018 | BS EN 12390 (PART 8). Applications : Water Penetration testing machine at 9 points to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. An operator can test any - Concrete cylinder of size 150 mm dia. X 160 mm high or cube moulds of 150 x 150 x 150 mm dimensions. Supplied complete with necessary Spanners and Air compressor of required capacity. Moulds are available at extra cost
Compliance Standards:
IS 516 (Part 2/Sec1): 2018 | BS EN 12390 (Part-8)
Applications :
Water Penetration testing machine with 9 cells to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure.
Descriptions :
- Concrete Permeability Apparatus consists of Nine specimen holder assemblies as per the standard IS 516 (Part 2/Sec1): 2018.
- Fitted with manifold assembly to hold end Pressure of max 7 kg/cm2 and a chamber Pressure Gauge of 14 kg/cm2 with another pressure gauge of 21 kg/cm2 to show the inlet pressure.
- An operator can test any - Concrete cylinder of size 150 mm dia. X 160 mm high or cube moulds of 150 x 150 x 150 mm dimensions.
- Supplied complete with Air Compressor
How the measurement is done?
The specimen is put into the test chamber, clamped with suitable flanges and gaskets, and then a known water pressure is applied on the specimen’s surface for prescribed time as requested by the respective Standard, by using a suitable air compressor (accessory). The water penetrated is measured by splitting the specimen.
