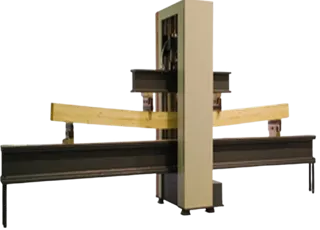

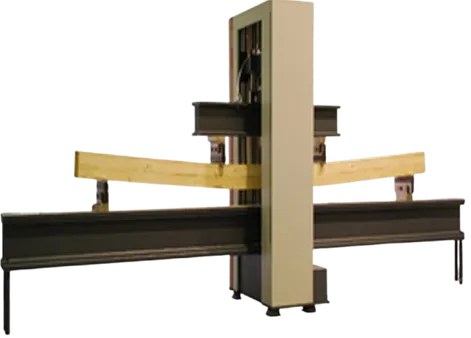

FLEXURAL STRENGTH TESTING MACHINE - FOR TIMBER - EN 408
Model Number : TM-74FAD-300
As per EN 408:2010+A1:2012 and ASTM D198. For determining the flexural properties of structural timber and glued laminated timber (glulam). The Servo controlled fully automatic Flexural Testing Machine comply with the requirements to perform four-point bending and three-point bending tests accurately. Testing Capacity: 300kN. Detailed specifications on the following page.
As per : EN 408/ASTM D198
General Description
- Automatic Servo controlled with Machine for Three- and Four-Point Flexure Testing, Testing Capacity: 300kN.
- Capable of conducting compression and flexural tests on concrete, Timber or other building material specimens and allied products of size :
(L) 1000mm to 3000mm,
(W) Width 25mm to 250mm and
(H) Hepth 75mm to 600mm
- Capability to be loaded in load, displacement or strain control basis.
- System accuracy better than + 1%.
- Arrangement for automatic pacing system.
Supplied with windows-based user friendly for Data acquisition and analysis with features for on line graphical presentation in addition to the numerical test results.
