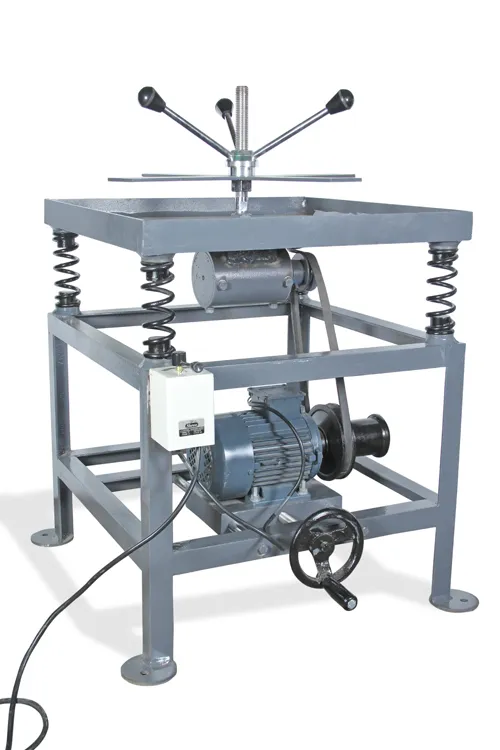

VIBRATING TABLE-60 X 60 CM-BS 1881, EN-12390-

Complies with following International Standards

BS 1881 (Part 108), BS 812, EN 12390

Application

For compaction of concrete cube cylinders.

Construction Details

1. The Vibrating table is manufactured from Mild Steel material which is powder coated in attractive shades.
2. The table deck size has stops along its edges to prevent moulds from walking off the table during operation.
3. The variable pitch pulley arrangement permits the frequency to be varied steplessly between maximum of 3600 vibrations down to 2600 vibrations per minute.
4. A speed regulation handle is provided for increasing or decreasing the frequency.
5. The vibrator is mounted on cushioned steel vibrating deck.
6. A switch is provided for turning on the motor.
7. Electric motor will be of reputed make such as GE/CROMPTON GREAVES/MARATHON
8. Operation on 440 Volts, 50 Hz, three phase, A.C. supply.
9. Dimensions : 600 mm x 600 mm

VIBRATING TABLE VARIETY: 60 X 60 CM (BS - 1881, EN - 12390)
