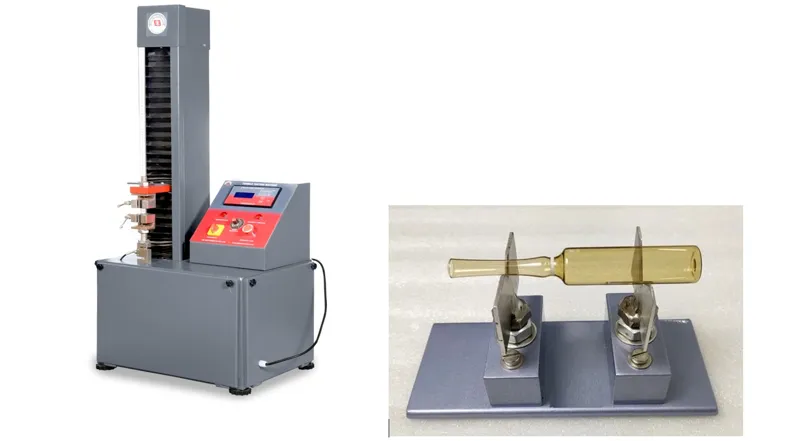

AMPOULE BREAK STRENGTH TESTER - 200 N - DIGITAL CONTROLLER WITH PC INTERFACE FACILITY - ISO 9187

AMPOULE BREAK STRENGTH TESTER - 200 N - DIGITAL CONTROLLER WITH PC INTERFACE FACILITY - ISO 9187

Model Number : PT-126DP

Our Automatic Penetration Force Tester is unique instrument for Penetrability testing with good stability, wide application and convenient usage with function of step less speed adjusting, uniform motion, converting mode between manual and automatic operation. It is used for various applications such as Puncture/ Piercing force of Syringe or hypodermic needle in Rubber stopper, Piercing Force, Penetration test, Measuring Strength of Glass Ampules as well as Scientific Research Institute & many more.

Compliance Standards:

ISO 9187

Salient features :

  1. Floor standing model
  2. Aesthetic outer appearance
  3. Unique and compact design features
  4. Fitted with Digital Load Indicator, Induction Motor and AC rive System
  5. Computer interfacing through RS‑232 USB cable
  6. Equipped with Ball screw for friction less traverse
  7. Rotary encoder to obtain high accuracy in elongation measurement
  8. AC Induction Motor & AC DRIVE for various combination of speed variation
  9. Comes with Calibration Certificate traceable to NATIONAL STANDARD
  10. Easy to use display unit and PC software
  11. On screen display of Maximum Load, Breaking Load, Elongation, and speed variations
  12. Supplied complete with Digital controller, Wedge fixture, Acrylic Guard, RS-232 PC Communication cable & PC Software.

Protection :

  1. Overload protection for load cell
  2. Over travel of traversing crosshead in both direction
  3. Automatic stopping and return of cross head at original position immediately on breakage/Failure of specimen
  4. Higher traverse speed
  5. Emergency Manual switch for stopping the machine

Supplied complete with following parts and accessories:

  1. Top Mechanical Wedge (common for all ampule sizes) INCLUDED with machine.
  2. Acrylic Guard (common for all ampule holders up to 20 ml) INCLUDED with machine.
  3. Ampoule Holder NOT INCLUDED with machine.
  4. Universal Holder (1-5 ml)
  5. Universal Holder (>10 ml)
  6. RS-232 Data Cable with USB-Serial Convertor
  7. 21-CFR PC Software

Note :

  1. Please share ampoule volume, stem dia and body dia at the time of order for smooth order processing.
  2. Customer will have to arrange the Desktop PC (Core i3, 4 GB RAM, 500 GB HDD, RS-232 port, 1080p HD Monitor) for report generation purpose through pc software
