Box Compression Tester
Digital Display - (Auto Calculation). Compliance standards IS : 7028 (Part ‑ VI), IS : 7028 (Part ‑ IX), ASTM D4577, ASTM D642, TAPPI : T804.
Bursting Strength Tester
Fully Automatic & Digital Economy Model for Bursting Strength Test of Corrugated Box or Corrugated Paper
COBB SIZING TESTER - (WATER ABSORPTION TEST OF PAPER)-(TAPPI T441)
An equipment to determine the water absorption property of paper, paper board and corrugated fiberboard in specified time under standardized conditions.
PAPER TUBE & PAPER CONE COMPRESSION TESTER - 1000 KGF CAPACITY - COLLAPSE TESTER
COLLAPSE TESTER FOR PAPER TUBE/PAPER CONE - ELECTRO-PNEUMATIC SYSTEM with One pair of adapter for flat crush. Radial crush adapters available at extra cost. Compressed air supply to be arranged by the user.
DETERMINATION OF RESISTANCE TO THERMAL SHOCK ON GLASSWARE
AS PER IS 6506.1972(R.A.2017) - Hot and Cold Water method. This method applies to all kinds of glass containers for pharmaceutical use, whose test temperature difference is less than 100℃. Apparatus as IS:11930(ISO 7459) also available
GO-NOGO HEIGHT GAUGE - FOR BOTTLES
Go/No-Go gauges are precision tools used in quality control to verify whether a glass bottle's dimensions, such as height, fall within specified tolerances. These gauges provide a simple pass/fail assessment, ensuring that each bottle meets the required standards.
AMPOULE BREAK STRENGTH TESTER - 200 N - DIGITAL CONTROLLER WITH PC INTERFACE FACILITY - ISO 9187
Our Automatic Penetration Force Tester is unique instrument for Penetrability testing with good stability, wide application and convenient usage with function of step less speed adjusting, uniform motion, converting mode between manual and automatic operation. It is used for various applications such as Puncture/ Piercing force of Syringe or hypodermic needle in Rubber stopper, Piercing Force, Penetration test, Measuring Strength of Glass Ampules as well as Scientific Research Institute & many more.
TUBE BURST STRENGTH TESTER - DIGITAL PENUMATIC MODEL
Leak Burst Testers are essential tools for ensuring the safety and reliability of food, pharmaceutical, and medical packaging. Designed for sealed laminated tubes, the instrument evaluates seal integrity and internal burst resistance by applying controlled internal pressure until failure occurs. This helps manufacturers verify packaging strength, durability, and compliance with industry standards.

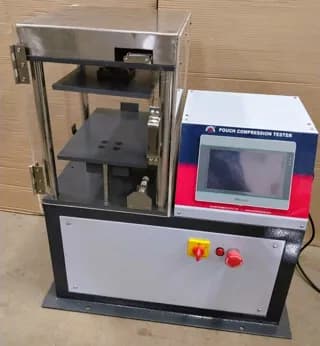

POUCH BURST/COMPRESSION TESTER-(500 KGF CAPACITY)-(200 X 200 X 50 MM PLATFORM SIZE)-(ELECTRO-PNEUMATIC MODEL)
Pneumatic Model with constant rate of loading (Load is increased on the pack gradually).Suitable for testing the Seal Integrity of Liquid / Gas Filled - Pouches / Sachets / Blister-packs.And suitable for 100 ml – 1,500 ml or larger packs.
VIBRATION TESTER-50 KG-LARGE PLATFORM - 800 X 800 MM
Vibration Table is used to test the transport worthiness of packages by simulating vibrations and shocks during handling and transportation, as per ASTM D999, TAPPI T17, and IS 7028 (Part II). It features a digital LCD display with 4.3" touch screen HMI, precise PLC control, adjustable frequency (1–3 Hz / 60–180 RPM), and digital timer for accurate testing. The machine has a strong structure with 1" vertical movement, sample protection rails, and ensures reliable results by replicating repetitive movement damage. It also includes safety features like emergency stop, RPM indicator, and MCB protection.
VIBRATING TABLE 3 FT X 1 FT WITH 3 SHELVES FOR VIBRATION TEST DURING TRANSPORTATION
This equipment is used for determination of vibration effect on digital controllers during transportation.

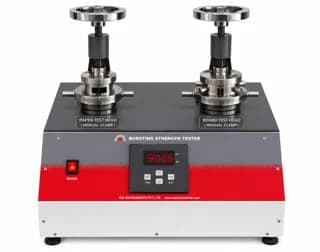

BURSTING STRENGTH TESTER-DUAL HEAD FOR PAPER AND BOARD-10 AND 50 KG PER CM2-DIGITAL ECONOMY MODEL
FOR Corrugated Paper and Corrugated Box Testing
FULLY AUTOMATIC LEAK TEST APPARATUS -WITH 12” DESICCATOR -
Fully automatic with 20 x 4 Line alphanumeric backlit LCD, Mobile Keypad, Programmable Vacuum & Hold Time, Selectable Pressure Units, 5 Setup Storage Facility, Automatic Last Result Storage, Printer Attachment Facility. The instrument is supplied in S.S. Cabinet. Extremely useful for packing industry and ideal for Leak Testing of Strips, Blisters & Sachets.
