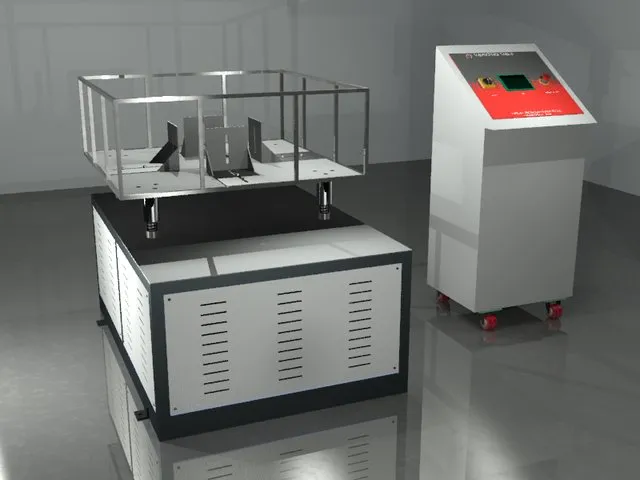

VIBRATION TESTER-50 KG-LARGE PLATFORM - 800 X 800 MM

VIBRATION TESTER-50 KG-LARGE PLATFORM - 800 X 800 MM

Model Number : EIE-PT-114L80

Vibration Table is used to test the transport worthiness of packages by simulating vibrations and shocks during handling and transportation, as per ASTM D999, TAPPI T17, and IS 7028 (Part II). It features a digital LCD display with 4.3" touch screen HMI, precise PLC control, adjustable frequency (1–3 Hz / 60–180 RPM), and digital timer for accurate testing. The machine has a strong structure with 1" vertical movement, sample protection rails, and ensures reliable results by replicating repetitive movement damage. It also includes safety features like emergency stop, RPM indicator, and MCB protection.

Compliance Standards:

ASTM D999, TAPPI T17, IS 7028(part II)

Applications:

Vibration Table is a consistent tool for checking Transport worthiness of packages. It simulates the vibrations and jolts subjected to various packages and products during handling and transportation.

Salient Features:

  1. Digital LCD Display
  2. 4.3" Touch Screen HMI
  3. Precise PLC (Programmable Logic Controller) for accurate results
  4. Highly accurate test results under various frequency settings
  5. Digital Timer for setting test run time
  6. Adjustable Frequency
  7. Digital Frequency setter Range : 1-3 Hz (60, 120, 180 RPM)
  8. Sample Slippage protection by rail on all sides
  9. Strong base plate with rugged structure
  10. 1" eccentric vertical movement with cam and shaft
  11. The damage caused by repetitive movement of the objects is replicated by the Vibration Table.
  12. User can set frequency and time and examine the damage caused by visual inspection on completion of test.

Electrical/Electronics:

  1. Digital Timer with facility for Auto Stop after preset time
  2. RPM Indicator
  3. Push Buttons ‑EMERGENCY OFF.
  4. 2 Pole MCB for Short Circuit Protection and also to work as Mains Switch.
