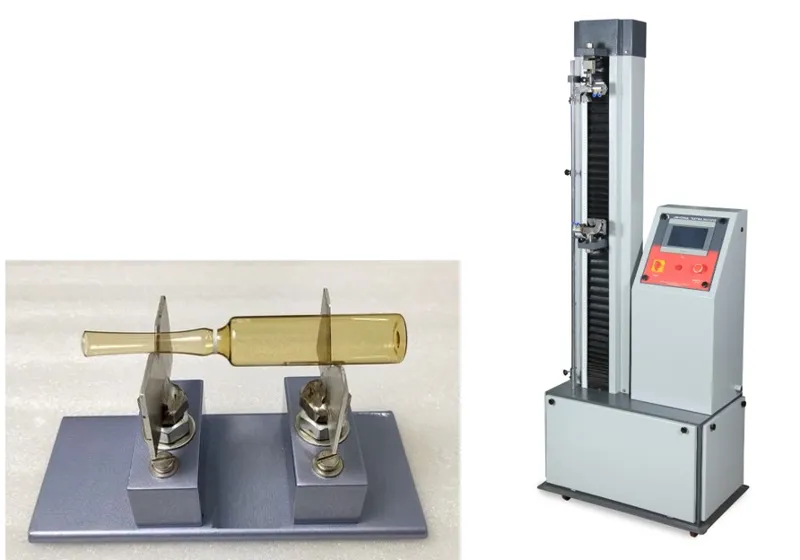

AMPOULE BREAK STRENGTH TESTER - 200 N - SERVO MOTOR CONTROLLED SYSTEM - ISO 9187

AMPOULE BREAK STRENGTH TESTER - 200 N - SERVO MOTOR CONTROLLED SYSTEM - ISO 9187

Model Number : PT-126DPS

Our Automatic Penetration Force Tester is unique instrument for Penetrability testing  with good stability, wide application and convenient usage with function of step less speed adjusting, uniform motion, converting mode between manual and automatic operation. It is used for various applications such as Puncture/ Piercing force of Syringe or hypodermic needle in Rubber stopper, Piercing Force, Penetration test, Measuring Strength of Glass Ampules as well as Scientific Research Institute & many more.

Compliance Standards

ISO 9187


Applications

Ampoule Break Force Tester is an equipment suitable for determining the force required to separate the ampoule stem from the body and for assessing whether a clean break is obtained.


ISO 9187 specifies the minimum breaking force to be 30N and the maximum breaking force to be 80N, 90N, and 100N for ampoules of <5ml, 10ml and >20ml respectively.


The Ampoule Break Force Tester can be used to test : OPC, CBR and SR type ampoules.


Salient features :

  1. Bench Top model
  2. Aesthetic outer appearance
  3. Unique and compact design features
  4. Fitted with Highly précised combination of PLC & HMI System, Servo Motor and Drive System
  5. Computer interfacing through RS‑485 USB cable
  6. Equipped with Ball screw for friction less traverse
  7. Rotary encoder to obtain high accuracy in elongation measurement
  8. SERVO MOTOR & DRIVE for various combination of speed variation as per following

     (1) High Torque at very Low Speed

     (2) High Torque at High Speed

  1. Calibration of entire Machine at Very Low Speed
  2. Easy to use display unit and software
  3. On screen display of Maximum Load, Breaking Load, Elongation, and speed variations
  4. Supplied complete with 4.3” colour touch HMI, Mechanical wedge fixture, Acrylic Guard.


Protection

  1. Overload protection for load cell
  2. Over travel of traversing crosshead in both direction
  3. Automatic stopping and return of cross head at original position immediately on breakage/Failure of specimen
  4. Higher traverse speed
  5. Emergency Manual switch for stopping the machine


Supplied complete with following parts and accessories.

  1. Top Mechanical Wedge (common for all ampule sizes) INCLUDED with machine.
  2. Acrylic Guard (common for all ampule holders up to 20 ml) INCLUDED with machine.
  3. Ampoule Holder NOT INCLUDED with machine.
  4. Universal Holder (1-5 ml)
  5. Universal Holder (>10 ml)
  6. RS-485 Data Cable with USB-Serial Convertor


21-CFR PC Software  or Regular software available at extra cost


Note

  1. Please share ampoule volume, stem dia and body dia at the time of order for smooth order processing.
  2. Customer will have to arrange the Desktop PC (Core i3, 4 GB RAM, 500 GB HDD, RS-232 port, 1080p HD Monitor) for report generation purpose through pc software
