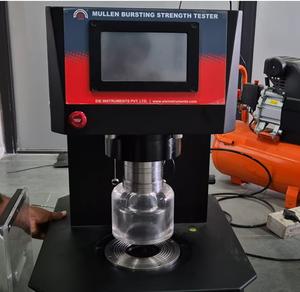

MULLEN BURSTING STRENGTH TESTER FOR WOVEN & LAMINATED FABRICS

Compliance Standards

ASTM 3786-06, ISO 2758, ISO 13938-1, BS 3424, BS 3137, BS 4768, AS 2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02, EDA NA 80.3-99, BS 2922, FZ/T 60019, JIS L 1018.6.17, NEXT 22 2206, FZ/T 01030, IS 1966 (Part 2): 2009, ISO 13938-1: 1999

Compliance Standards

1. Highly accurate
2. Servo Motor driven precise operating system
3. Automatic Clamping with clear acrylic bells coupled with LED Observation lamp
4. Bells & Lamp provides firm and reliable clamping
5. Large Color graphic HMI Touch screen
6. Operates in three different modes - Constant Speed Mode, Certain Pressure Mode, Certain Extension Mode
7. Automatic Induction and Bursting Operation
8. Built in Memory and Printing option
9. Can store generated data for further analysis purpose
10. Digital display and micro printer to print the test results.
11. Laser ranging and automatic zeroing to accommodate the thickness of the test specimen.
12. Equipped with transparent safety cover in the clamping device during the test when the expansion of the test specimen takes place. It allows clear observation of the expansion of the test specimen during the test
13. Elastic diaphragm within the range of the height at burst observed during the test
14. Height at burst up to 70 mm will be indicated with an accuracy of ± 1 mm.
15. Supplied complete with various test heads and clamps - 7.3 cm2 (30.9 mm dia), 10 cm2 (35.7 mm dia), 50 cm2 (79.8 mm dia), 100 cm2 (112.8 mm dia)

Standard accessories

1. Wrench
2. Calibration Plate
3. Rubber Diaphragm
4. PC Interface Cable
5. PC Software
6. 7.3 cm2 (30.9 mm dia), 10 cm2 (35.7 mm dia), 50 cm2 (79.8 mm dia), 100 cm2 (112.8 mm dia)

Note

Air Compressor is essential accessory and available at extra cost.
