ROCK (CORE) DRILLING MACHINE

Introduction

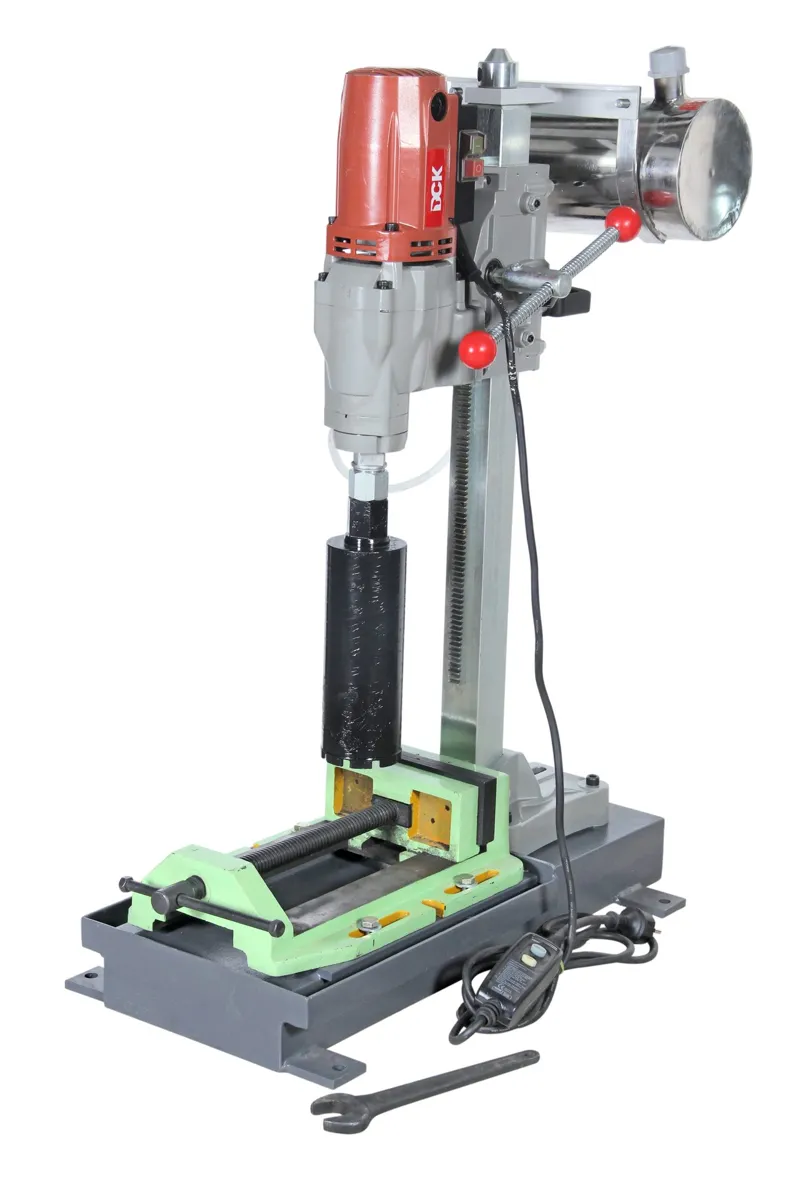

1. The diamond drill press is especially designed to drill in various size core samples. The standard machine comes with a floor standing drill press, a rotary union, a coolant feeding system, a coolant recovery pan with splash guard and a core clamping vise. Capable to drill up to NX size sample.

Apparatus Details

1. Heavy duty pillar type frame
2. Equipped with 2 H.P., Single phase, AC motor,
3. Varying cutting feeds provided with water fed swivel head, which can be connected to suitable water supply provision at base for water collection / drainage.
4. Core preparation from regular and irregular samples core size EX to NX,
5. Clamping arrangement to hold specimen with regular/irregular shapes to the base of machine,
6. Four different cutting speeds of 600, 800, 1100 and 1500 RPM
7. With necessary drilling bits of following diameters
8. 21.46 mm, 30.10 mm, 38 mm, 42.04 mm, 54.74 mm
