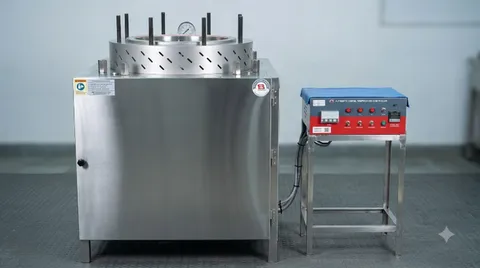

TILES AUTOCLAVE - CRAZING TEST AUTOCLAVE - 350MM DIA X 450MM DEPTH - EN ISO 10545-11-COMPLETE SS304
Model Number : TC-112DP43SS
Detailed Specification as follows:
Salient Features:
- Triple safety against accidental over pressure. Safety Valve / Pressure control switch/ Digital Temp. indicator cum controller
- Simple in design and operation
- Easy heater replacement
- Calibrated Pressure Gauge
- Matt buffing of boiling chamber
- Matt buffing of autoclave lid
- Safety against Electrical Short circuit
- As per IS:13630/Part ‑9
- Chamber Size : 350 X 450 MM
- Maximum Tile Size : 12" X 16"
- Maximum Pressures : 10 kg/cm2 (990 KPA)
- Maximum Temperature : 165 °C
- Chamber volume : 43 Liters
- The machine is design with cooling coil for the rapid cooling of the chamber (chiller water in supplier scope)
- The machine is fitted with 7" touch screen for the controlling of the pressure
- The autoclave is fully automatic, simple plug and play instrument.
- The user can set desired pressure with desired soaking time. The user can set 5 point pressure with soaking time cycle.
- Once the ultimate required pressure is achieved, the pressure will be hold till desired time.
- Once pressure cycle is completed, the solenoid valve will automatically actuate and allow to chilled water to circulate inside the cooling coil to rapidly cool the autoclave.
- Once the desired pressure is achieved (0.05 kg/cm2), the water circulation in the cooling coil will be stopped and the door of the autoclave is ready to open.
- Quadruple walled construction, Inside S.S. Boiler, air insulation cover, Glass wool Insulation cover and outer cover. Special design ensures easy heater replacement, even by one skilled man.
- A special gasket is fitted in the grooves to resist high pressure and temperature.
- 10 kg/cm2 Pressure ‑ It consists of a thick Stainless steel cylinder. Duly Buff finished with insulation covers, mounted on a sturdy supporting frame, enclosed in a metal housing. The attached control unit encloses a sensitive pressure regulator, pressure gauge and safety valve. Further fitted with a 7" touchscreen to control pressure, temperature, soaking and cooling. An electrical safety switch is provided for prevention of short circuit. A special safety valve is made of stainless steel and factory calibrated to safeguard against over pressure.
- Suitable for operation on 440 Volts, 50 Hz, Three Phase, AC supply
