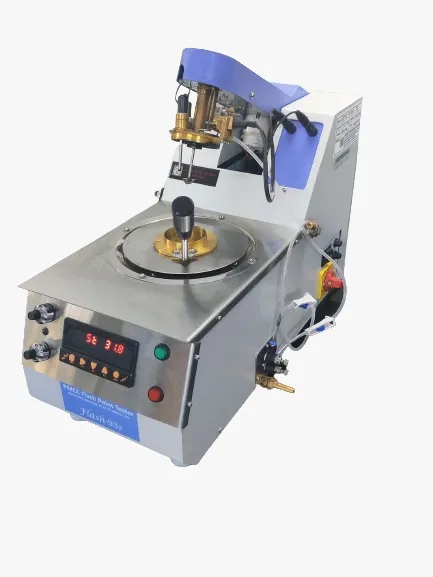

PENSKY MARTEN FLASH POINT APPARATUS- SEMI AUTOMATIC WITH HEATING & COOLING FACILITY
Model Number : EIE-PTLT-101SAA
The EIE-PTLT-101SAA is designed to determine the flash point of petroleum products, biodiesel, lubricating oils, solvents, and a wide range of other homogeneous petroleum-based liquids. It operates across a temperature range of 40°C to 360°C for petroleum products and 60°C to 190°C for biodiesel — covering virtually the entire practical range required by PMCC test methods. Supplied complete with Sample Cup – 1 nos. Electric Igniter – 1 nos. Gas Igniter, Pilot Flame, Low pressure regulator with Tubing
PENSKY MARTEN VARIETY
- DIGITAL
- DIGITAL WITH MOTORISED STIRRER
- FULLY AUTOMATIC
- SEMI AUTOMATIC
- SEMI AUTOMATIC WITH HEATING & COOLING FACILITY
- SEMI AUTOMATIC WITH HEATING FACILITY
- WITH ENERGY REGULATOR
- WITH VOLTAGE VARRIER
Compliance Standards:
IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3
Applications:
Covers the determination of flash points of Bio-Diesel & blends, Distillate Fuel (Diesel, Kerosene, Heating oil, Turbine Fuel), Lubricating oil and other homogeneous petroleum products.
The Instrument stands out in the precision of its heating control. A ten-turn potentiometer gives operators fine, step-by-step control over the heating rate — a level of adjustment that single-turn alternatives simply cannot match. Combined with automatic flash detection, fixed test components, and an inbuilt centrifugal cooling blower, the instrument removes the most error-prone elements of manual PMCC testing while retaining a level of operator engagement that many laboratories actively prefer.
Salient Features:
- Semi automatic operation
- Single push button for stirring & heating operation
- Cooling is achieved by high speed quiet running fan
- User can test Frequent samples within 5-10 minutes of interval
- Electric igniter operating on 230 Volts, 50 Hz, Single Phase, AC Supply
- Automatic Flash Detection
- Digital sample reading display with buzzer
- Sample Temperature reading is locked and displayed at Flash Point/Result
- Permanently fixed sample cup lid, stirrer, sample temperature sensor, flash detector with Heating & Cooling facility.
- Sample cup is removable
- In addition to electric igniter, a Gas Igniter, Pilot Flame, Low pressure regulator with Tubing is also supplied
- Also, supplied complete with Test certificate, Instruction manual and other relevant documents
| Initialization | Stirrer, Igniter & Igniter mechanism checked during Initialization |
|---|---|
| Cooling | High speed fan of 20 Watts @ 24 Volts |
| Heating elements | Band Heater of 450 watts ratings, @ 230 VAC |
| Heat rate control | Heat rate control with precise ten turn potentiometer |
| Temperature Range | 40-350°C |
| Temperature Accuracy | ± 1 °C |
| Temperature Resolution | 0.1 °C |
| Stirring | Speed Control by Precise Potentiometer from 50 to 250 rpm |
| Ignition | Electric / Gas Igniter interchangeable |
| Test Mode | with a single push button (stirring & heating stops with electric igniter lightning, dipping and resume, if flash detects cooling starts wit |
| Lid assembly | Permanently fixed sample cup lid, Stirrer, sample temperature sensor, Flash Detector and Igniter for easy operation |
| Measurement | |
| Sample temperature | Glass PT 100 , Class A, with digital indication / Thermometer interchangeable |
| Flash detection | Ionization Ring and Buzzer (Sample temperature reading gets lock with Flash Point heading) |
| Housing dimensions | |
| Dimension Main Unit | 250 mm x 450 mm x 320 mm (W x D x H) |
| Weight Main Unit | 12 Kgs |
| Remote unit | 150 mm x 125 mm x 120 mm (W x D x H) |
| Weight of remote unit | 0.8 Kgs |
