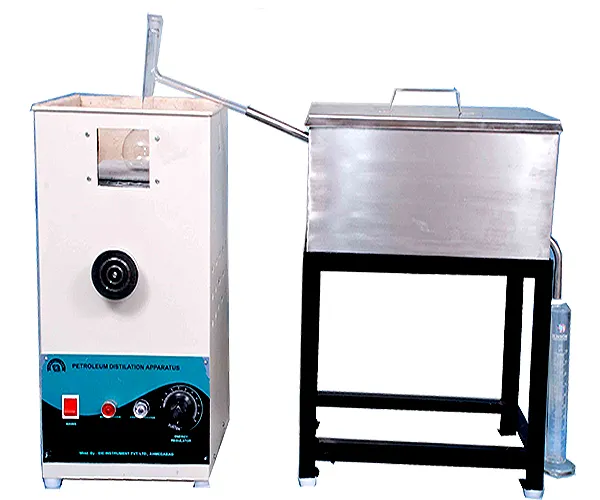

PETROLEUM DISTILLATION APPARATUS
Model Number : EIE-149FARS
This apparatus is used for determinations of distillation characteristics of petroleum products. The instrument consists of metal shield to support distillation flask with GEARED HEIGHT ADJUSTABLE DEVICE. It has a slot for vapor tube. A glass window is provided in front side for clear view of inside objects. It also has S.S. cooling bath with M.S. black painted stand. Electrically heated. The instrument is supplied with two square asbestos boards with 50 mm and 70 mm holes. Single Distillation Apparatus electrically heated with energy Regulator with Gear device (without glass wares and Thermometers which are available at extra cost)
REFRIGERATION TYPE
- NON-REFRIGERATED / DIGITAL PID CONTROLLER
- NON-REFRIGERATED / ENERGY REGULATOR
- REFRIGERATED / FULLY AUTOMATIC
- REFRIGERATED / SEMI AUTOMATIC
PETROLEUM DISTILLATION
| Paint | Powder coating paint |
|---|---|
| Glass Window | For clear view of Inside object |
| Insulation | 4 side insulated sheet to avoid thermal loss |
| Temperature Control | Energy regulator (Electrically heated) without display |
| Heating element | Two square Heat resistant boards with 50 mm and 70 mm holes |
| Operation on | 230 Volts, 50 Hz, Single Phase, AC Supply |
