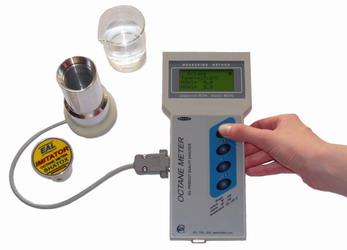

PORTABLE OCTANE AND CETANE ANALYZER
Model Number : SX-150
Detailed specification as follows.
MODEL NO
- SXE-150E
- SXE-250E
PORTABLE OCTANE AND CETANE ANALYZER
| Petrol Octane Number | |
|---|---|
| Measured petrols octane numbers range | 40–135 ON |
| Acceptable limit of octane number measurement basic error, max | ± 0.5 ON |
| Limit of acceptable difference between parallel octane number measurements, max | ± 0.2 ON |
| Petrol Oxidation Breakdown Time | |
| Petrol oxidation breakdown time measurement range | 50-2400 minutes |
| Acceptable basic error limit of petrol oxidation breakdown time | 10 Minutes |
| Cetane Number | |
| Cetane numbers measurement range | 20–100 CN |
| Acceptable basic error limit of cetane numbers, max | ±1.0 CN |
| Acceptable difference limit between cetane numbers parallel measurements, max | ± 0.5 CN |
| Diesel Fuel Pour Point | |
| Acceptable error limit when determining diesel-fuel pour points | ± 5 °C |
| Kerosine content determination range in diesel fuels | 0-95 % |
| Acceptable basic error limit when determining kerosene content in diesel fuels | 3% |
| Motor Oil Clarity Level Measurement | |
| Motor oils clarity level measurement range | 95-100 % |
| Acceptable error limit of motor oils clarity level measurement | 0.1 % |
| Acceptable difference limit between motor oils clarity parallel measurements | 0.01 % |
| Di-Electric Permeability Measurement | |
| POL dielectric permeability measurement range | 1–5 Unit |
| Acceptable error limit of dielectric permeability measurement, max | 0.001 Unit |
| Acceptable difference limit between POL dielectric permeability parallel measurements, max | 0.001 Unit |
| Water in Oil Content | |
| Water-in-oil content determination range for oil products | 0-4 % |
| Acceptable basic error limit when determining water-in-oil content of oil products | 0.001 % |
| Measurement Time | 1–5 s |
| Insufficient power supply indication operation threshold | 5.4 V |
| Instrument useful life | 6 |
| Overall Dimensions | |
| Electronic module | 100 x 210 x 40 mm |
| Sensor #1 and #2 | 60 х 100 mm |
| Weight | 680 Grams |
