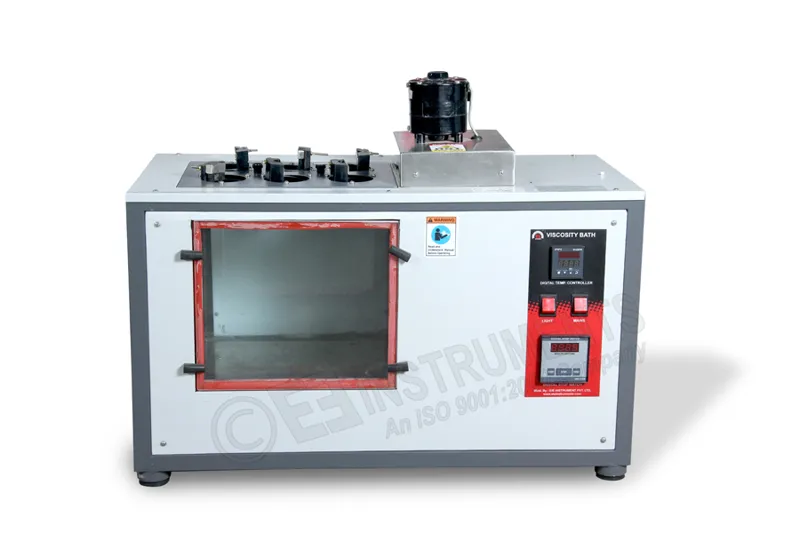

ULTRA LOW TEMP. KINEMATIC VISCOSITY BATH - 4 VISCOMETERS
Model Number : EIE-410ULDP10
Suited for 4 Viscometer at a time. Compliance with following International Standards : ASTM D445, IS 1448 (P 25). Detailed Specification as follows:
WORKING TEMPERATURE RANGE
- -10˚C TO 100˚C
- -20˚C TO 100˚C
- -40˚C TO AMBIENT
- -80˚C TO AMBIENT
ULTRA LOW TEMP. KINEMATIC VISCOSITY BATH - 4 VISCOMETERS
| Bath | |
|---|---|
| Dimensions of bath | 300 x 260 x 300 mm (L x W x D) |
| Volume of the bath | 23 Liters capacity |
| Temperature Control | Range : -10 °C to 100 °C |
| Temperature controller | Microprocessor based Auto Tune PID Digital Temp controller cum indicator |
| Temperature sensor | PT 100 Sensor |
| Temperature Display | LED Display |
| Display resolutions | 0.1 °C |
| Temperature Accuracy | ± 0.5 °C |
| Heater | Immersion heater |
| Viewing window | Vacuum glass window for frost free viewing below 5°C range |
| Stirrer | 1400rpm motor with stirrer for uniform Temperature |
| Stirrer Motor | Of reputed make |
| Inner chamber | Stainless Steel S.S. 304 Grade with tempered glass |
| Exterior body | Fabricated from mild steel material, which is powder coated in attractive shades |
| Illumination | PL Lamp |
| Accessories | Supplied complete with Viscometer holders |
| Accommodate | 04 Nos of viscometers |
| Bath Media | ISOPROPYL ALCOHOL or suitable heat transfer fluid (To be supplied by user) |
| Electrical Supply | 220 volts, 50 Hz, AC Supply |
| Power Consumption | 2 KW |
| Refrigeration System | |
| Refrigeration | Emerson/Danfoss Make refrigeration system |
| Compressor | Hermetically Sealed Compressor |
| Condenser | Fin & Tube type Air Cooled Condenser |
| Cascade System | For below -40°C ranges |
| Refrigerant | R404a |
