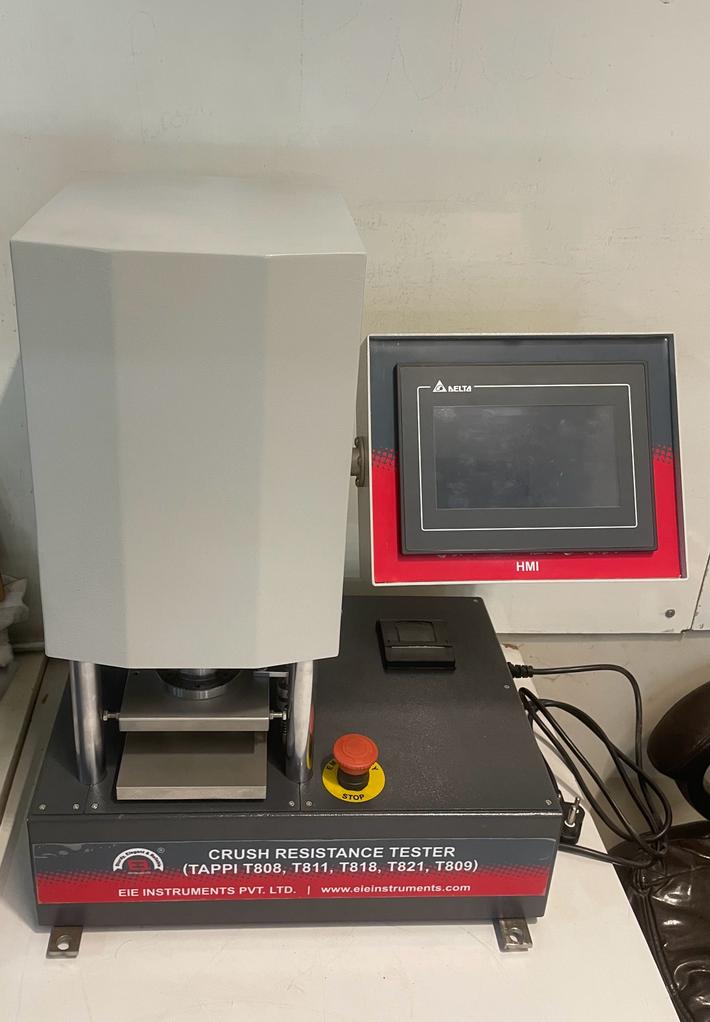

CRUSH RESISTANCE TESTER - DIGITAL MODEL - 500 KGF - RCT, ECT, FCT, PAT TESTER
Model Number : EIE-PT-110DPHMI
(HMI, PLC & SERVO CONTROLLED MODEL) - (FOR CORRUGATED BOX OR CORRUGATED PAPER TESTING)
Compliance with following International Standards:
TAPPI T808, T811, T818, T821, T809
Applications:
An electronic instrument to measure and directly indicates
- The compression strength of small cartons

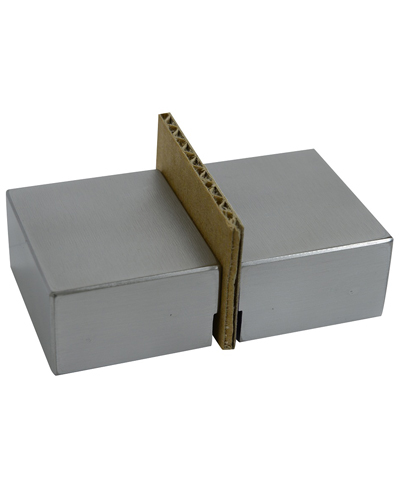

- Edge Crush, Flat Crush and Pin Adhesion properties of Corrugated Board

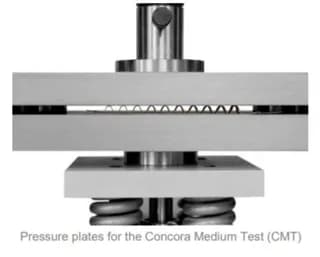

- Ring Crush & Corrugating Medium Test (CMT) of Paper and Paperboard
Salient Features:
- Electromechanical design
- Bench top and user friendly model
- Aesthetic exterior appearance
- Powder coated body
- Direct Digital reading of Load
- Sophisticated Electronic Controls for precision and easy operation
- Peak-hold facility, Low noise, Low maintenance, No wear-n-tear
- Stepper Motor & Drive for Precise Speed Control

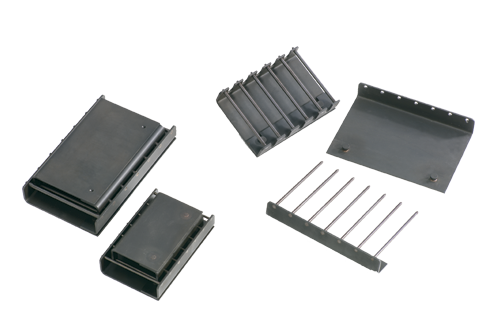

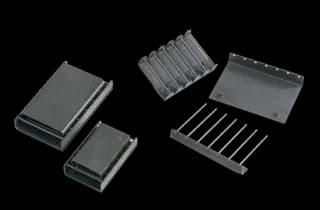

- Supplied with attachments for carrying out Flat Crush, Edge Crush, Ring Crush, CMT, PAT and CCT test (At extra cost)
- Thermal Printer Port facility to generate printed report (standard Accessory)
- RS-485 Port, with dedicated PC software, to transfer data to computer (At extra cost)
| Exterior body | Fabricated from Mild Steel Material |
|---|---|
| Paint | Powder coating in attractive shades |
| Platen size in mm | 100 mm dia |
| Vertical daylight in mm | Maximum 300 mm |
| Load cell Capacity | 500 kgf (5 kn) |
| Load cell sensitivity | ± 0.2% Full Scale |
| Least count | 0.05 kgf |
| Loading speed | 12.5 ± 0.25 mm/min |
| Controller | 3.5” Colour touch screen with PLC (Programmble logic controller) |
| Display | LCD Display with back light indication |
| Data Storage | Up to last 5 readings (Controller storage) |
| Unit Selection | Kg / KN / N |
| Electric Motor | Reputed make stepper motor to yield constant rate of pumping |
| Power Supply | 220 Volts, 50 Hz, Single Phase, AC Supply |
| Weight | 80 kg (Approximatey) |
