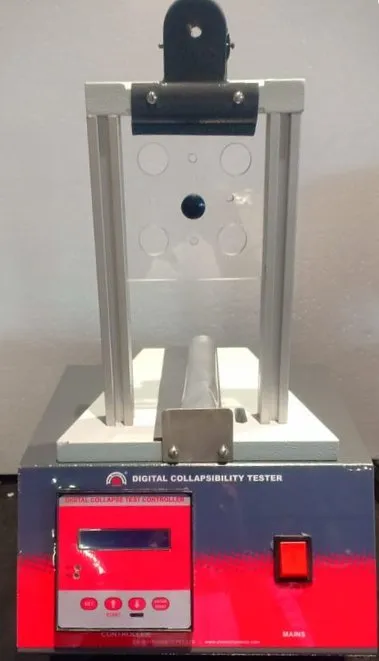

DIGITAL COLLAPSIBILITY TESTER FOR ALUMINIUM SQUEEZE TUBE - (ANNEALING TESTER)

Compliance standard:

IS: 7182‑1973

Application:

The test is required for assessing the functional quality of aluminum collapsible Tubes.

Salient Features:

1. Generate results in digital display
2. Can cross verify with the Analog scale
3. Ease of measurement
4. High resolution, 0.01 mm from 50-100 mm
5. Digital controller with built in Laser Sensor for Compression (deformation) measurement
6. LCD Display and control buttons for easy configuration
7. Measurement value is indicated with 0.01mm resolution on LCD Display
8. Configurable measure mode and measurement range
9. In built Calibration facility

Details:

1. A standard load is allowed to fall on the empty tube and the resistance offered to this load is measured.
2. Designed For tube of diameter    : 13.5 mm
3. Grooving radius               : 32 mm
4. Grooving Depth               : 5 ± 0.2 mm
5. Distance b/w stopper & shutter   : 32 mm
6. Shutter weight                : 70 ± 1 Gram
7. The auxiliary base plate is to be inserted in the apparatus.
8. Complete with stand, shutter mechanism, Digital controller and Digital Laser sensor.
