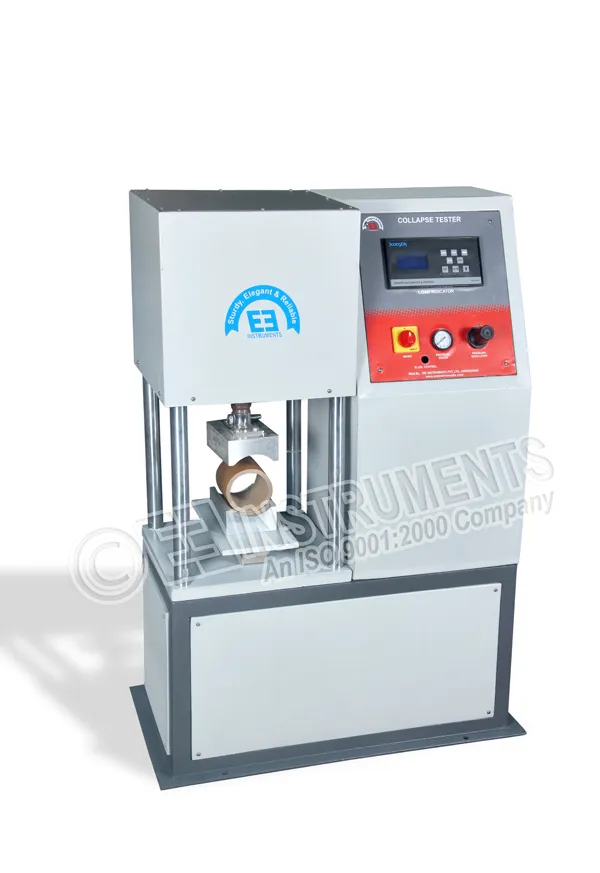

PAPER TUBE & PAPER CONE COMPRESSION TESTER - 2000 KGF CAPACITY - COLLAPSE TESTER
Model Number : EIE-PT-104B
COLLAPSE TESTER FOR PAPER TUBE/PAPER CONE - ELECTRO-PNEUMATIC SYSTEM - 2000 KGF CAPACITY MODEL with One pair of adapter for flat crush. Radial crush adapters available at extra cost. Compressed air supply to be arranged by the user. Further details as mentioned in detailed description. (Please specify tube OD x length or core OD dimensions while ordering to avoid delays.)
PAPER TUBE & PAPER CONE COMPRESSION TESTER - 2000 KGF CAPACITY - COLLAPSE TESTER
| Capacity | 2000 Kgf (at 6 kg/cm2 air pressure) |
|---|---|
| Least count | 10 Kgf |
| Accuracy | 0.5% of Full Scale |
| Power Supply | 230 Vols, 50 Hz, Single Phase, AC Supply |
| Exterior body | Fabricated from Mild steel material |
| Exterior Body Paint | Powder coating in attractive shades |
| Overall Dimensions | 725 X 415 X 900 (L X W X H) MM |
| Weight (Approx.) | 90 kg |
RADIAL CRUSH ADAPTER FOR TEXTURISING TUBES-(57MM ID & 62/63MM OD)-FOR COLLAPSE TESTER
RADIAL CRUSH ADAPTER FOR TEXTURISING TUBES-69MM ID AND 75MM OD-FOR COLLAPSE TESTER
RADIAL CRUSH ADAPTER FOR POY & OTHER TYPE OF PAPER CORES-(UPTO 125MM OD)-FOR COLLAPSE TESTER
RADIAL CRUSH ADAPTER FOR POY AND OTHER TYPE OF PAPER CORES-(125-150 MM OD)-FOR COLLAPSE TESTER
RADIAL CRUSH ADAPTER FOR POY AND OTHER TYPE OF PAPER CORES-(150-185 MM OD)-FOR COLLAPSE TESTER
