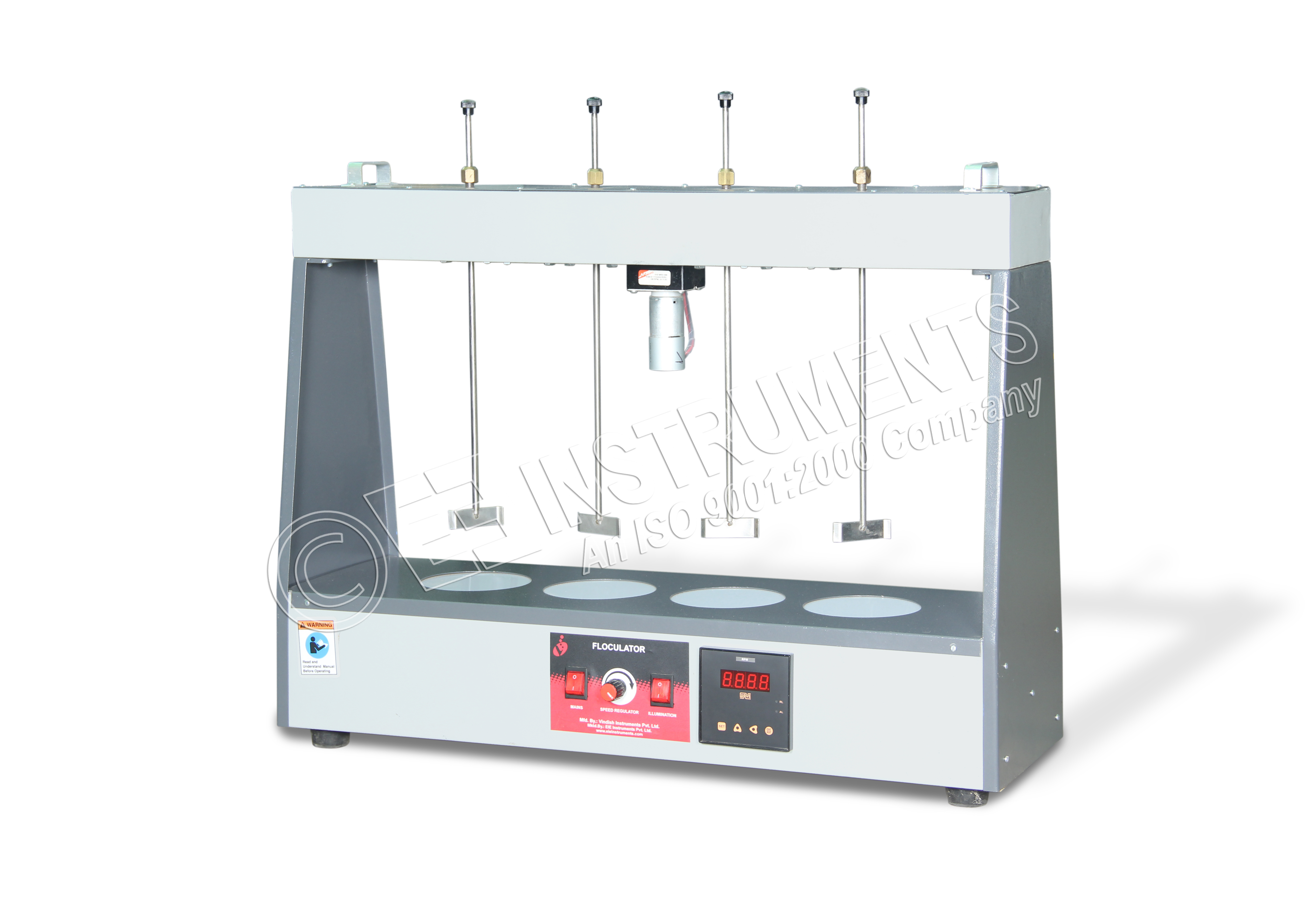

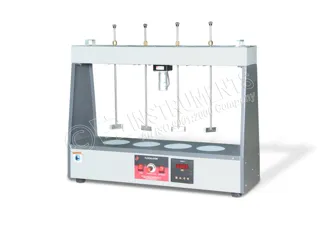

FLOCULATOR - JAR TEST APPARATUS -S.S. BODY WITH DIGITAL RPM INDICATOR-1 LITER X 6 STIRRER.
Model Number : EIE-109CG6
For unifom stirring up to six samples simultaneously.with variable speed 30 - 200 ± 5% RPM approx .DC electric motor with DIGITAL RPM Indicator and electronic speed regulator .Strong S.S Housing ,Stainless steel stirring paddles ,arrangement to adjust paddle height, beakers up to 2000 ml.capacity can be used, with ON/OFF switch and built in fluorescent tube.Supplied without glass beaker, Working on 230 V AC .
test
| Type | 06 Test Apparatus |
|---|---|
| Variable Speed Range | (30 - 200) ± 5% RPM |
| Solid airless wheel | DC electric motor with Reduction Gear |
| Motor Speed Control | With electronic speed regulator (DC Drive) |
| RPM Indication | Digital RPM Indication |
| RPM Display | LED Display |
| Motor Make | Of standard reputed make such as MARATHON / GE / REVOLUTION |
| Motor Watt | 25 watt / 40 watt |
| Illumination | Built in Fluorescent tube under acrylic cover for each test positions |
| Operation on | 230 Volts, 50 Hz, Single Phase, AC Supply |
| Dimension | 1000 X 290 X 710 (L X W X D) mm |
| Weight (Approx.) | 25 kg |
