Compliance Standards:
ASTM D624
Applications:
A Sharpened metal tool To cut & prepare specimen of Textile and coated fabrics
Details:

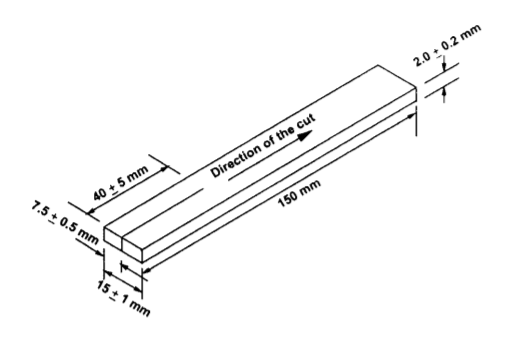

A rectangular specimen containing a slit. The force acts along the major axis, the direction of the slit, in a direction parallel to the length. This measures tear propagation and is widely used in the testing of textiles, coated fabrics, and similar materials. A Tear Die T die with an integral cutter for producing the slit.
Notes
(1) No warranty is applicable in case of punch die as smooth & uninterrupted operation of dies depends on various other governing factors such as Proper Alignment of dies, Bottom Support, Technical skills of the operator etc.
(2) This is purely visual and skill based work. Any random un-skilled operator can damage the die and EIE shall not be held responsible for the same.
(3) Use of Saag Wood / Teak Wood as bottom support to withstand the actual force of press after the specimen has been cut is highly recommend. Die shall not be used without reliable Saag Wood / Teak Wood as bottom support.
| Slit Length | 40 ± 5 mm |
|---|---|
| Width overall, mm | 15 ± 1 mm |
| Length overall, mm | 150 mm |
| Cutter depth | 8 mm |
| Can cut samples at a time | 3-4 samples at a time |
| Standard reference | ASTM D624 |
