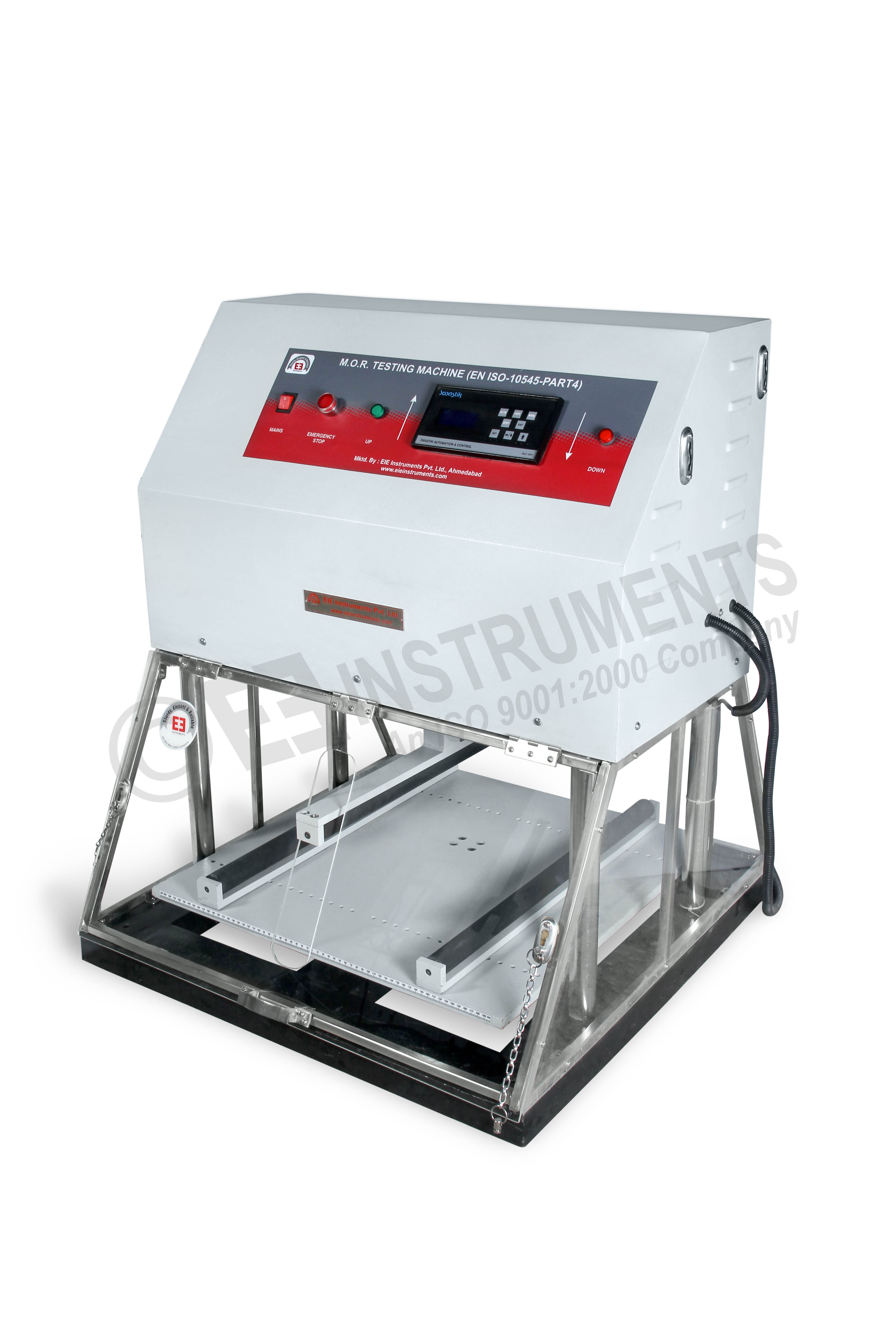

MOR TESTING MACHINE-50/500 KGF-FOR GREEN/FIRED CERAMIC BAR

Salient Features:

1. Suitable to test Fired & Green ceramic Tile/Bar on the same machine
2. Suitable for quiet and vibration free operations
3. Suitable for MOR Test of Ceramic Tiles / Bars as per IS0 : 10545 and IS : 13630
4. Direct reading possible for different shapes of tiles (Square, Rectangular and Round)
5. Supplied with sample platform of 30 x 30 cm size and dedicated load cell
6. Digital Model with LCD Display for easy readability
7. Back light to observe the readings even in dark.
8. Direct Display of Load / Collapsing Force/MOR Value/Breaking strength value.
9. Auto reverse facility upon sample failure
10. Over load and Over travel protection facility
11. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
12. With embedded push buttons operation on Digital panel
13. Integrated AC drive in main controller as to control rate of loading through controller itself
14. Equipped With special guard to protect the operator against Ceramic splinters.
15. Equipped With 2 Rubber Lined rollers of 30 mm diameter
16. Adjustable span length facilitates MOR Test on various sizes of tiles
17. Auto‑Calibration facility using standard Cast Iron Weights and standard code (Supplied without weights)

Supplied with MOR Software (Optional**):

1. PC Software to log & Modify the generated date
2. Two way communication with the machine
3. Direct reading of MOR value and Breaking strength in excel format
4. Reading can be saved and printed from the computer
5. Connection through RS‑232 port
6. User can start/stop the machine form the computer
7. User can enter Batch no, Date, Time, Dimensions of the test samples for report purpose
8. User can enter company LOGO for report generation
9. Can export the generated report in PDF, EXCEL, WORD Format

Optional Accessories:

1. Standard PC Software to log and modify the series of results for future provisions** @ Rs 30000
2. 1 KVA servo controlled stabilizer is recommended @ Rs 10,500
3. 20 mm Rubber lined rollers @ Rs 4000
4. 10 mm Rubber lined rollers @ Rs 4000
5. Closed loop programmable servo mechanism with position feedback (encoder) system instead of using conventional AC Drives. @ Rs 125000

Note:

1 KVA servo controlled stabilizer is recommended
