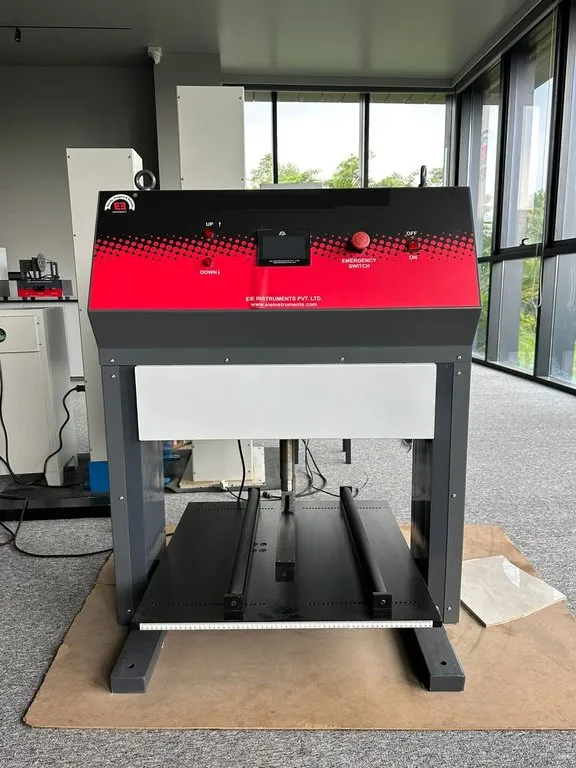

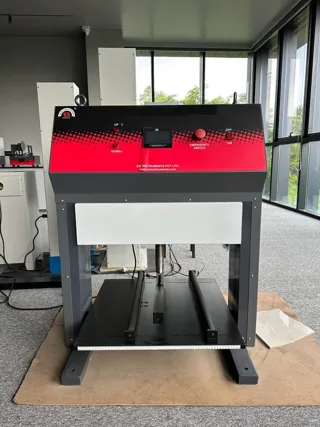

MOR TESTING MACHINE-500 KGF-FOR CERAMIC BAR

AS PER BIS 2556 (PART 1) (2021)

Salient Features:

1. Suitable to test Fired Bar
2. Supplied with flexible platform and dedicated load cells
3. Suitable for quiet and vibration free operations
4. Suitable for MOR Test of Ceramic Tiles / Bars as per IS : 2556 - part 1 (2021)
5. Direct reading possible in n/mm2
6. Digital Model with LCD Display for easy readability
7. Back light to observe the readings even in dark.
8. Direct Display of Load / Collapsing Force/MOR Value/Breaking strength value.
9. Auto reverse facility upon sample failure
10. Over load and Over travel protection facility
11. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
12. With embedded push buttons operation on Digital panel
13. Integrated AC drive in main controller as to control rate of loading through controller itself
14. Equipped With 2 rubber coated rollers of 15 mm diameter
15. Auto‑Calibration facility using standard Cast Iron Weights and standard code (Supplied without weights)

Supplied with MOR Software (Optional**):

1. PC Software to log & Modify the generated date
2. Two way communication with the machine
3. Direct reading of MOR value and Breaking strength in excel format
4. Reading can be saved and printed from the computer
5. Connection through RS‑232 port
6. User can start/stop the machine form the computer
7. User can enter Batch no, Date, Time, Dimensions of the test samples for report purpose
8. User can enter company LOGO for report generation
9. Can export the generated report in PDF, EXCEL, WORD Format

Optional Accessories:

1. Standard PC Software to log and modify the series of results for future provisions**
2. 1 KVA servo controlled stabilizer is recommended
3. Closed loop programmable servo mechanism with position feedback (encoder) system instead of using conventional AC Drives.

Note:

1 KVA servo controlled stabilizer is recommended
