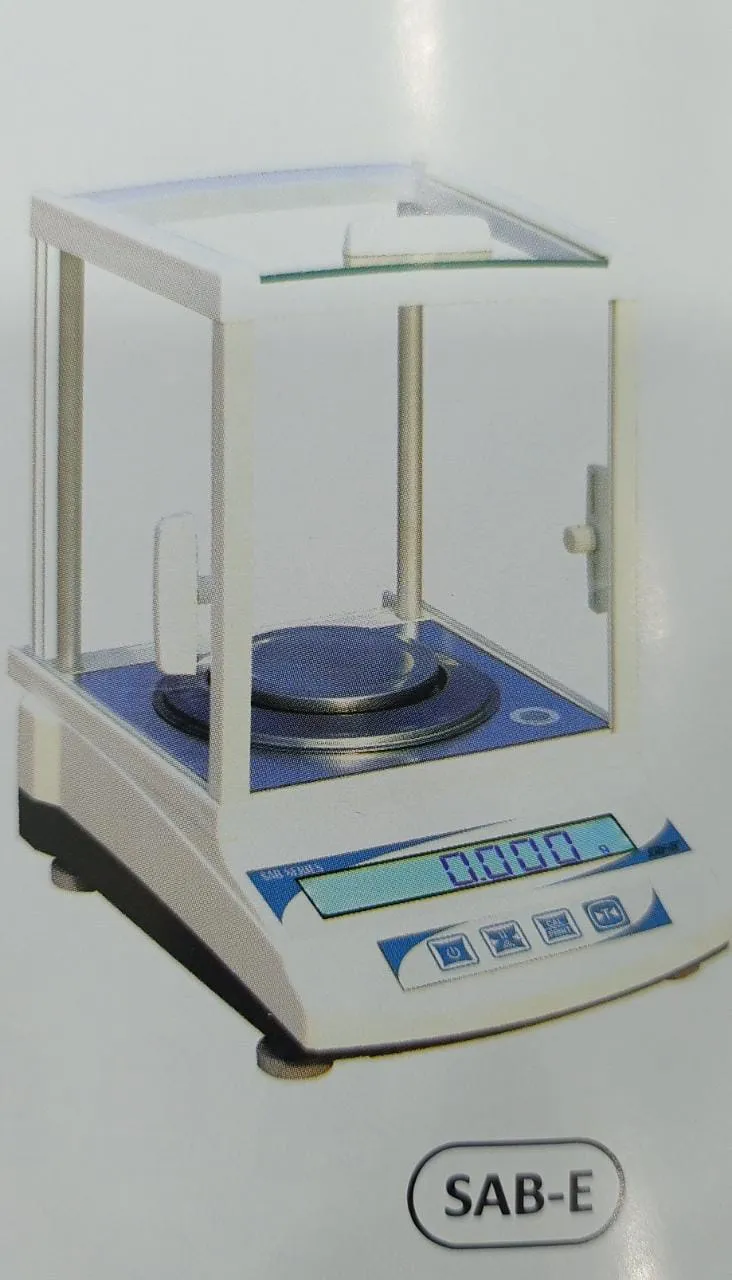

ELECTRONIC WEIGHING BALANCE -220 GM-0.001 GM (1 MG)-EXTERNAL CALIBRATION-MODEL SAB 203E

ELECTRONIC WEIGHING BALANCE -220 GM-0.001 GM (1 MG)-EXTERNAL CALIBRATION-MODEL SAB 203E

Model Number : SAB-203E

WEIGHING CAPACITY

  • 1 KG / 0.1 GM (100 MG) / EXTERNAL CALIBRATION / SWISS 1020
  • 62 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL ATY 64
  • 82 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL ATX 84
  • 100 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 103
  • 120 GM / 0.0001 GM (0.1 MG) / AUTO CALIBRATION / MODEL AGN 120
  • 120 GM / 0.0001 GM (0.1 MG) / AUTO CALIBRATION / MODEL AUW 120
  • 120 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL ATY 124
  • 120 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL AUY 120
  • 120 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL SAB 124CL
  • 120 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL ATX 124
  • 120 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL AUX 120
  • 120 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL SAB 124CL
  • 120/42 GM / DUAL RANGE 0.1/0.01 MG / AUTO CALIBRATION / MODEL AUW 120D
  • 200 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 203
  • 220 GM / 0.0001 GM (0.1 MG) / AUTO CALIBRATION / MODEL AGN 220
  • 220 GM / 0.0001 GM (0.1 MG) / AUTO CALIBRATION / MODEL AUW 220
  • 220 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL ATY 224
  • 220 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL AUY 220
  • 220 GM / 0.0001 GM (0.1 MG) / EXTERNAL CALIBRATION / MODEL SAB 224CL
  • 220 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL ATX 224
  • 220 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL AUX 220
  • 220 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL QUNTIX 224
  • 220 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL SAB 224CL
  • 220 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 223CL
  • 220 GM / 0.001 GM (1 MG) / INTERNAL CALIBRATION / ATA-220G
  • 220 GM / DUAL RANGE 0.1/0.01 MG / AUTO CALIBRATION / MODEL AUW 220D
  • 300 GM / 0.0001 GM (0.1 MG) / AUTO CALIBRATION / MODEL AGN 300
  • 300 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 303
  • 320 GM / 0.0001 GM (0.1 MG) / AUTO CALIBRATION / MODEL AUW 320
  • 320 GM / 0.0001 GM (0.1 MG) / INTERNAL CALIBRATION / MODEL AUX 320
  • 320 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL CAH-323
  • 320 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 323CL
  • 320 GM / 0.001 GM (1 MG) / INTERNAL CALIBRATION / ATA-320G
  • 420 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 423CL
  • 500 GM / 0.001 GM (1 MG) / INTERNAL CALIBRATION / AKA 520G
  • 520 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 523CL
  • 520 GM / 0.001 GM (1 MG) / INTERNAL CALIBRATION / ATA-520G
  • 620 GM / 0.001 GM (1 MG) / EXTERNAL CALIBRATION / MODEL SAB 5623CL

Salient Features

  • LCD with backlight
  • Response in 3 seconds
  • Linear calibration
  • Selectable weighing units and count mode.
  • Standard RS232 with PC software(optional）
  • Fit with inner chargeable DC battery (optional)
  • Fit with dual extra display (optional)



Technical Specifications

  • Capacity                           : 220 Gram
  • Readability                      : 0.001 Gram
  • Repeatability                   : ± 0.003 Gram
  • Linearity                           : ± 0.002 Gram
  • Pan size                            : 80 mm diameter
  • Response Time               : Less than 3 Seconds
  • Display                              : Back light LCD Display
  • Calibration                       : Single key with external weights
  • Units of Measure            : gm, ct, lb, gsm, mg
