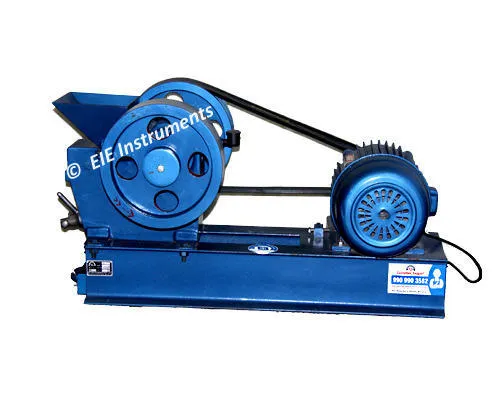

JAW CRUSHER-4" X 6" (100 X 150 MM)

JAW CRUSHER-4" X 6" (100 X 150 MM)

Model Number : EIE-230P0406

EIE Make Laboratory Jaw Crusher with L&T Starter is designed to speed up the crushing process of aggregate, minerals, coals, coke, chemicals and other similar materials. Input size : 50 mm maximum, Output size : 5-10 mm (adjustable),Complete with godrej /crompton 3 HP 3 Phase Electric Motor and l& t Starter. With sample collecting tray. Roll crusher (up to 2 mm) and pulverizer (up to 150 mic) required for further reduction of material.

Construction Details

  • Two jaws of manganese steel are provided in the jaw crusher.
  • The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum.
  • A combination of forward and downward strokes with a rocking action exerts pressure on the coarse material to pass through the jaws.
  • A hopper is provided at the top for feeding materials.
  • The smooth jaws ensure a uniform product output.
  • Easy cleaning & Maintenance is possible.
  • Extremely fast & efficient primary crushing.
  • Rigid & dust tight design.
  • Start & Stop push button, overload protection for motor, are incorporated within the unit.

 Supplied with following accessories

  1. A  3  H.P.  Motor
  2. A starter
  3. 'V' belt pulley drive
  4. Mounting wire for 440 Volts, 3 - phase, 50 hz, A.C. Supply
Click here for working videohttps://www.youtube.com/watch?v=QHV-OZIuIkA
