PORTABLE TOUCH SCREEN HMI BASED - PREMIUM REFLECTANCE METER / WHITENESS METER
Model Number : TC-1177T
Principles - Whiteness is property of Luminous Objects. Whiteness is measured in terms of diffuse Reflectance, which is the ratio of reflected light measured at 90° after passing through a suitable filter and the incident light that is generally at 45° to the surface of the sample. With 45° Diffuse Reflectance head for whiteness & brightness measurement. This Instrument is Filter less - 2 colors wavelength provided on selectable switch with long life secondary standard. Detailed specification as follows:
Compliance Standards :
ISO 2470-1, ISO 2470-2, ISO 2469, ASTM D985, IS 101, IS 1060 (Part 4, Sec 13), TAPPIT 519, T525,T527,T534
Applications :
Ideal for materials such as paper, pulp, textiles, plastics, Salt, Industrial salt, Starch, Calcium carbonate, Talcum powder and other powders
Salient Construction Features :
- Portable & Handy Structure
- Easy to clean & operate
- Aesthetic exterior appearance
- High accurate & reliable
- Low maintenance
- Comes with easy to carry flight case
Key operating Features :
- Ideal for measuring whiteness & brightness in variety of material such as paper, pulp, textiles, plastics, Powder and more
- Same instrument can be used to measure Whiteness & Brightness with secondary standard.
- Measures both 𝗪𝗵𝗶𝘁𝗲𝗻𝗲𝘀𝘀 & 𝗕𝗿𝗶𝗴𝗵𝘁𝗻𝗲𝘀𝘀 using a single instrument
- Full Spectrum Green & Blue LED technology for enhanced accuracy (Filterless design)
- 3.5" Colour Touch Screen HMI with intuitive icon-based navigation
- Lightweight, portable design with premium flight case
- Operates with a standard USB Type-C charger—no bulky power adaptor required
- Remote software diagnostics for quick technical support
- Low maintenance, reliable performance, and easy operation

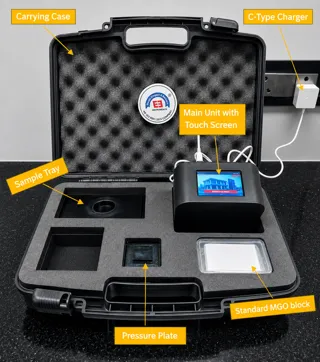

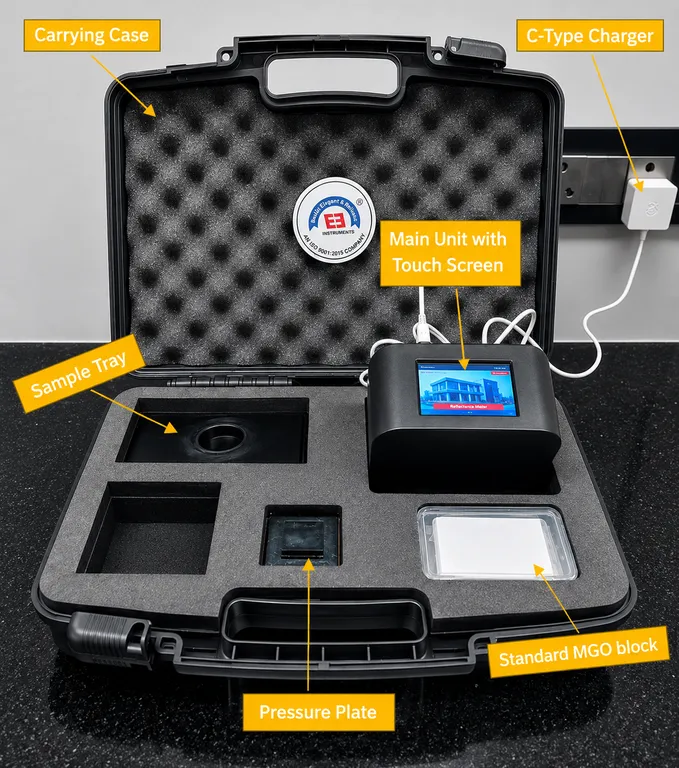

- Supplied complete with following accessories
(1) Powder adaptor - 01 No
(2) Standard MGO Block with Calibration value of Whiteness and Brightness - 01 No
(3) Pressure Plate - 01 No
(4) Powder Tray - 01 No
(5) Instruction Manual - 01 No
| Light Source | Long life LED / Tungsten Lamp |
|---|---|
| Detector | Sealed silicon photo detector |
| Diffuse Reflectance | 00.0 to 100.00 with negative & over range indication, |
| Display | 3.5" Touch Screen HMI display (With decimal) |
| Accuracy | ± 1 % |
| Accessories | Instruction Manual, Powder Tray, Pressure Plate, Standard block |
| Overall Dimensions | 147 X 76 X 105 (L X W X D) mm |
| Weight Net | 550 Grams |
| Operating Voltage | 230 V, 50 Hz, Single Phase, AC Power supply |
