COMPRESSION TESTING MACHINE - FULLY AUTOMATIC - SERVO CONTROLLED
This machine is essential for precise and efficient concrete strength testing, ensuring compliance with industry standards critical to civil construction. It is widely used in construction projects and laboratories to validate the quality and durability of concrete materials. Conforms to EN 12390-4, ASTM C39, AASHTO T22, IS: 14858 (2000), and other international standards like ISO 7500-1 and JIS A 1108. Automatic Operation: Minimal user input required; automatic rapid piston approach, test speed adjustment, and motor stop after specimen failure.Adjustable pace rate (0.1 kN/sec to 10 kN/sec) with dual-stage pump for fast and precise execution. Robust Frame: High-stiffness welded frame with a heavy-duty spherical seat for accurate specimen alignment.PC software for two-way communication, result storage, and report printing.

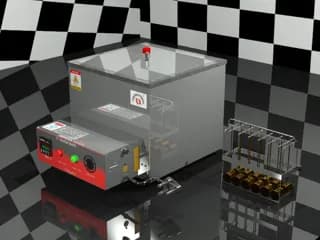

WATERBATH FOR SOUNDNESS TEST OF CEMENT
IS 269, 712, 5514, 1727, 2645, 6932 (Part IX), BS 6463, and EN 196-3 standards. The double-walled, argon-welded inner chamber is made of S.S. 304 with high-grade glass wool insulation for excellent thermal efficiency. The bath is designed to raise the temperature from 27 °C ± 2 °C to boiling point in 27 ± 3 minutes. Available in thermostatic (non-digital) and digital temperature indicator-cum-controller models. Supplied complete with a stand to accommodate up to 12 Le Chatelier moulds, ensuring specimens remain fully immersed as per code requirements.
PAVEMENT CORE DRILLING MACHINE WITH PETROL ENGINE
Complete with Honda Petrol Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately.

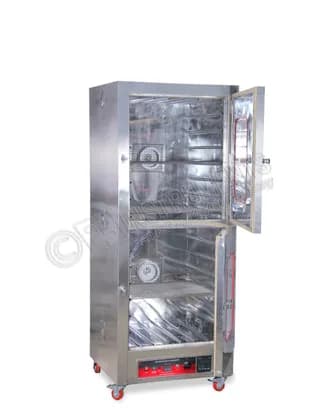

COMBINED OVEN CUM INCUBATOR-60 X 60 X 60 CM INNER CHAMBER-GMP MODEL-TWIN CHAMBER
Double walled, inner chamber S.S.304, Outer body is also fabricated from S.S. - 304 Material , 65 mm thick glass wool insulation , 80/20 nichrome heating elements placed under ribs at bottom and sides for uniform heat distribution Temp. Range. 50˚C to 250˚C , Auto tune Dual Display Digital, forced air circulation, Working on 230 Volts AC Single Phase.
COMPRESSION TESTING MACHINE (CTM)-DIGITAL
Our CTM Machine features advanced load cell technology for precise force measurement and a stable plate model for accurate load centering. With manual pace rate control, you can easily adjust testing speeds across a wide range of conditions, ensuring versatility in all your testing needs. Safety and efficiency are integrated with an auto-stop function and a digital display that shows load readings in both KN and N/mm², automatically calculated for ease and accuracy. Ideal for any construction project, this machine helps maintain the highest quality standards.
SPECIFIC GRAVITY TEST APPARATUS FOR BITUMINOUS MIX - GMM TEST
Complete with Vacuum Pump, GMM Flask of 2 ltr or 5 Ltr. Capacity and 1.5 meter high pressure rubber tubing.
COMBINED OVEN CUM INCUBATOR-60 X 60 X 60 CM INNER CHAMBER-POWDER COATED MODEL-TWIN CHAMBER
Double walled, inner chamber S.S.304, Outer CRC powder coated , 65 mm thick glass wool insulation , 80/20 nichrome heating elements placed under ribs at bottom and sides for uniform heat distribution Temp. Range. 50˚C to 250˚C , Auto tune Dual Display Digital, forced air circulation, Working on 230 Volts AC Single Phase.

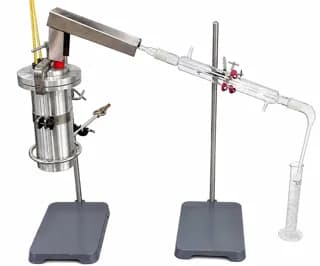

APPARATUS FOR DISTILLATION OF EMULSIFIED ASPHALT - (WITH RING BURNER) - (ASTM D244, ASTM D6997)
The distillation of emulsified asphalt is performed to determine the water and residual asphalt content of emulsified asphalts. The process separates water from asphalt by applying heat and measuring the residue. Complies with ASTM D244, ASTM D6997, AASTHO T59.
BEAM MOULD
Manufactured as per IS:10086 / IS:10086-2021 standards, available in both Cast Iron and Mild Steel construction. Cast Iron moulds feature 10mm plate thickness with base plate, weighing approx. 20 kg (total 28–30 kg) and 45 kg variants (size 150 × 150 × 700 mm). Mild Steel moulds are low cost, approx. 28–30 kg, However, for Mild Steel variants, strict BIS dimensional accuracy and tolerance cannot be assured, and no rejection will be accepted on account of quality variations.

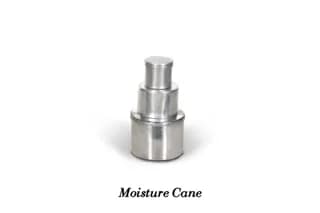

MOISTURE CAN
Moisture Cans are precision containers made of seamless, corrosion-resistant metal with airtight lids, used for determining the moisture content of soil, aggregates, and other materials. Their leak-proof design ensures accurate weight measurement before and after oven drying, making them essential for laboratory and field testing.
BALLAST SIEVE
Ballast Sieve is used for grading and particle size analysis of railway ballast and coarse aggregates. It helps determine the size distribution of materials to ensure compliance with specified standards for construction and railway engineering applications.

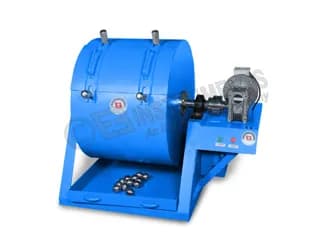

LAB BALL MILL
Laboratory Ball Mill, Available in 5 kg and 10 kg capacity models, each supplied with a pre-settable digital counter and 12 Nos. 19 mm diameter steel balls. Steel balls of various sizes are available at extra cost for customized testing requirements.
MARSHALL MOULD
The Marshall Mould is designed for the preparation of Marshall specimens, this mould assembly conforms to ASTM D1559, AASHTO T245, EN 12697-10, and ASTM D6926 standards. It is manufactured from high-quality seamless steel and finished with a durable powder coating to ensure long-term corrosion resistance. Suitable for use with both automatic and manual compactors. The set comprises a mould body, collar, and base plate, and is available in 4-inch and 6-inch diameters for precise and consistent asphalt sample preparation.
MARSHAL RAMMER
Compaction Hammer with flat, circular tamping face, available with 10.21 ± 0.01 kg or 4.5 kg (10 lbs) sliding weight, and 457.2 ± 2.5 mm (18 inch) free fall. The 10.21 kg model features a 149.4 mm diameter tamping face.

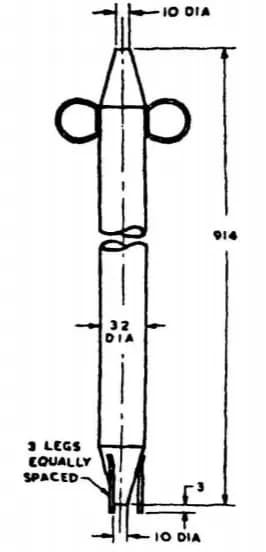

BITUMEN SAMPLER
Bitumen Samplers (Tube Type and Scoop Type) are designed for safe and accurate sampling of bitumen in accordance with BIS 1201 standards. Manufactured from durable, corrosion-resistant material, these samplers ensure reliable collection of representative bitumen samples from storage tanks, drums, or containers. Suitable for laboratory and field use, they provide ease of operation and consistent sampling for quality control and testing purposes.
DISC PULVERIZER
Disc pulverizer with L&T Starter is a disc type grinder, designed to grind virtually any material to produce a fine mesh up 70 mesh sample in one operation.

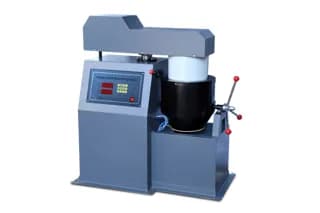

PLANETARY MIXER
It consists of three parts: heating pot, stirrer and Lifting mechanism. The temperature of the heating pot can be set arbitrarily from room temperature to 250 ℃, and the temperature can be controlled automatically. The agitator is composed of a mixing head, a motor and a mixing paddle. During operation, the mixing paddle rotates and rotates in the pot to mix the mixture. The mixing time is controlled by timer and can be set arbitrarily in the range of 1-9999 seconds. The lifting mechanism is composed of motor, belt reducer, lead screw and other components, which is used to realize the lifting of agitator. When feeding or discharging, the agitator rises to the highest position, while when mixing, the agitator drops to the lowest position.

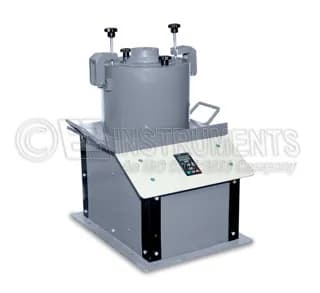

BITUMEN EXTRACTOR
Designed for accurate determination of bitumen in hot mix and pavement samples, this apparatus ensures smooth, vibration-free operation with variable speed up to 3600 RPM (motorized model). Complies with ASTM D2172, AASHTO T 58, and T 164 standards. Available in multiple variants: motorized with digital RPM, hand operated, flameproof motor, and without heater (IS 1195 / IS 1322). Optional accessories available separately.

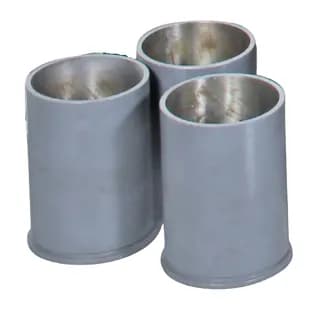

CYLINDRICAL MOULD
Cylindrical Moulds are used for casting concrete specimens for compressive strength testing. Available in various standard sizes and manufactured in compliance with relevant IS specifications, these moulds are offered in both ISI-marked (Heavy Duty HT-PU) and non-ISI variants. Made from high-quality Cast Iron they ensure durability, dimensional stability, and ease of handling. Ideal for laboratory and field applications, designed to deliver consistent and reliable specimen preparation.
LE-CHATLIER FLASK
Used for measurement of specific gravity of hydraulic cements. As per ASTM C188, AASTHO T133, EN 196-6, IS :4031 (Part XIII)
PAN MIXER
Our Concrete Pan Mixer is engineered for optimal performance and durability. Designed to cater to both professionals and DIY enthusiasts, this mixer ensures a thorough and consistent mix every time. The robust pan mixer is perfect for a variety of materials, from cement to concrete, making it an essential tool for construction projects. Its high-quality mixing pan for concrete guarantees efficient and uniform mixing, reducing labor and time. Whether you're looking to pour foundations, driveways, or patios, our concrete mixing pan stands out as a reliable choice for precise and durable construction work. Experience enhanced productivity and superior mixing with our top-of-the-line Concrete Pan Mixer.
