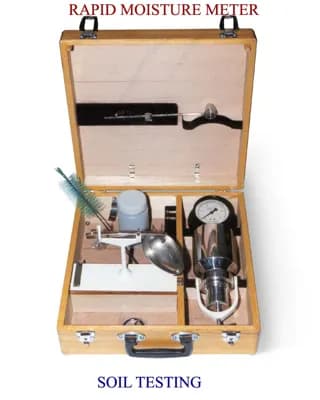

RAPID MOISTURE METER-WITH PRESSURE GAUGE
The unit consists of a pressure vessel with clamp for sealing cap, rubber sealing gasket, pressure gauge calibrated in percentage moisture content 0 - 25% X 1% or 0 - 50% X 1% on the wet weight basis, a counter poised balance for weighing sample or a pocket type electronic weighing balance, a scoop for measuring carbide reagent, a bottle of reagent, one cleaning brush and a set of 4 steel balls (3 OF 12.5MM AND 1 OF 25MM DIA) for thorough mixing. Complete in highly polished wooden carrying case with handle.
VIBRATING MACHINE FOR CEMENT MORTAR - IS : 10080
The machine is capable for compaction of cement mortar cubes as per IS: 4031 and designed as per Standard IS : 10080. The complete frame assembly consists of device to hold a 7.06 cm cube mould to feed the sample in the mould. The frequency of vibration is 12000 ± 400 R.P.M. Vibration per minute. Supplied complete with one 7.06 cm cube mould and a DIGITAL Timer. Complete with One No. poking rod to meet IS: 10080 requirements.

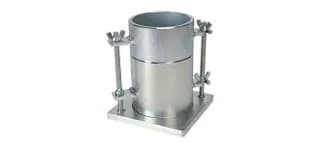

PROCTOR COMPACTION MOULD 100MM DIA - IS 10074
Standard compaction mould, As per IS 2720 (Part VII) 1980 and IS 10074-1982. With base plate and collar. Proctor Rammer available at extra cost. Also available as per ASTM D1557 / BS 1377-4
MODIFIED PROCTOR COMPACTION MOULD 150MM DIA - IS 10074
As per IS 2720 (Part VIII) and IS:10074-1982. Complete with base plate and collar. Proctor Rammer avaiable at extra cost. Also available as per ASTM D1557 / BS 1377-4
ROUND HOT PLATE
ROUND HOT PLATE FOR WEBSITE

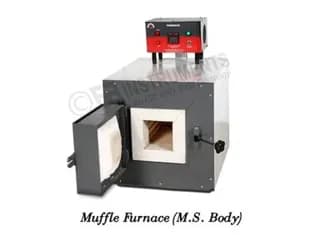

LABORATORY FURNACE
High-performance laboratory Muffle Furnace designed for precise heat treatment, ashing, and material testing applications. Built with a durable CRC sheet outer chamber, powder-coated for long-term protection. The heating chamber features grooved refractory bricks and Nichrome/Kanthal heating elements arranged in coil form for uniform temperature distribution. Controlled by a dual-display microprocessor-based digital temperature controller with K-type sensor and compensating cable. Operates on 230 V AC with models available up to 900°C and 1200°C (working temperatures 850°C and 1150°C).

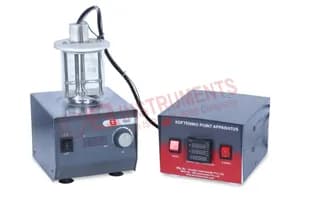

RING AND BALL APPARATUS
The Ring and Ball Apparatus is a precision testing instrument specifically designed for determining the softening point of bituminous materials, such as asphalt and pitch. This apparatus operates on the principle of heating a substance along with two horizontal rings until the material softens and flows down at a specific temperature, indicating its softening point.

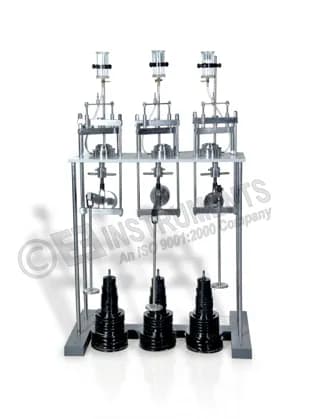

CONSOLIDATION APPARATUS
AS PER IS :2720(PART-XV) Consists of Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand. Choice of 1 or 3 or 6 Nos.Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens.
HUMIDITY CHAMBER-45X45X45 CM
A humidity chamber, also known as a climatic chamber or environmental chamber, is widely used in laboratories to simulate different environmental conditions such as temperature and humidity. These chambers allow controlled conditions to test the performance, durability, and stability of various materials, products, and components when exposed to different environmental factors. The primary purpose is to ensure that the material or product can withstand specific climate-related stresses. Humidity chambers are essential tools across various industries for simulating environmental conditions that products might encounter during their lifecycle.
HUMIDITY CHAMBER-90X60X60 CM
A humidity chamber, also known as a climatic chamber or environmental chamber, is widely used in laboratories to simulate different environmental conditions such as temperature and humidity. These chambers allow controlled conditions to test the performance, durability, and stability of various materials, products, and components when exposed to different environmental factors. The primary purpose is to ensure that the material or product can withstand specific climate-related stresses. Humidity chambers are essential tools across various industries for simulating environmental conditions that products might encounter during their lifecycle.

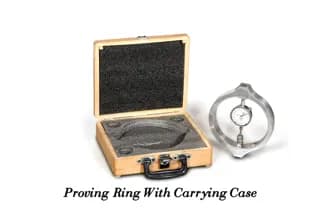

COMPRESSION PROVING RING-25 KN
As per IS 4169:2014 (ISO 376:2011, Reaffirmed 2020). Proving rings are typically made from high-grade steel alloys, chosen for their elastic properties and durability. The special manufacturing process ensures the consistent and precise force measurements. Available in the capacity ranging from 0.5 KN to 3000 KN.
STABILITY TEST CHAMBER (Humidity Chamber)
Achieve precise environmental testing with our Humidity & Stability Test Chamber. It offers accurate control of temperature and humidity, which is ideal for stability testing in pharmaceuticals, cosmetics, and electronics. It is durable, user-friendly, and designed to meet industry standards and ensure reliable results.

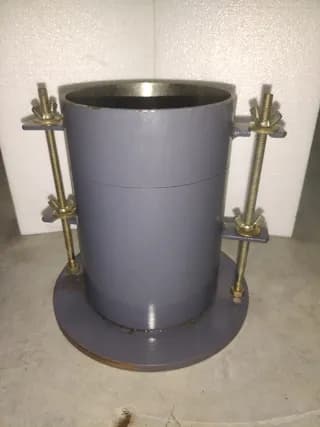

CBR MOULD- IS:9669
As per IS:9669. 150 mm Internal dia X 175 mm high with extension collar and perforated base plate. Made of Mild-Steel. Also available as per ASTM D1883 / BS-1377-4
HOT AIR OVEN
Hot Air Oven available in Inner SS and GMP Models, featuring double-walled construction with SS 304 inner chamber, CRC powder-coated outer body, and 65 mm thick glass wool insulation. The unit is fitted with 80/20 nichrome heating elements placed under ribs at the bottom and sides to ensure uniform heat distribution. Temperature range: 50°C to 250°C / RT + 5°C to 250°C. Available with thermostatic temperature control or Auto Tune Dual Display Digital Controller, and with natural air circulation or forced air circulation options.
PENSKY MARTEN FLASH POINT APPARATUS
The Pensky Martens Flash Point Apparatus is an essential laboratory device designed to determine the flash point of petroleum products, lubricating oils, and other viscous materials. This precision instrument conforms to the Pensky Martens Closed Cup (PMCC) method, ensuring accurate and reliable results that are critical for safety assessments in various industrial applications.

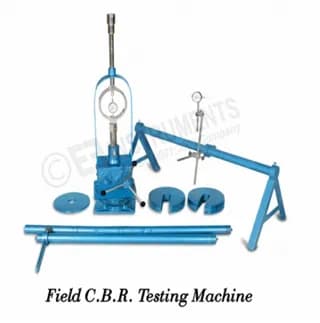

FIELD CBR TEST APPARATUS.
The Field California Bearing Ratio (CBR) Test as per IS: 2720 (Part 31) IRC:37- is conducted to determine the strength of subgrade soil, subbase, and base course materials in road and pavement design. Can also be supplied as per BS 1377-9

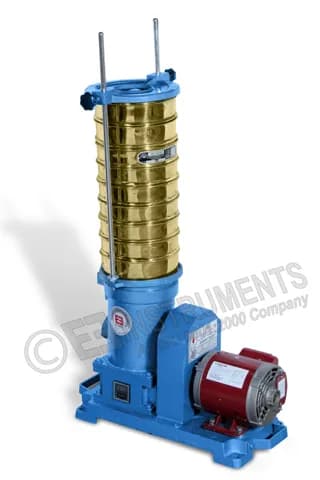

GYRATORY SIEVE SHAKER
A Gyratory Sieve Shaker is an advanced device designed for the precise grading of powders, granules, and other materials. It is widely utilized in industries such as chemical processing, pharmaceuticals, food and beverage, and construction materials testing.

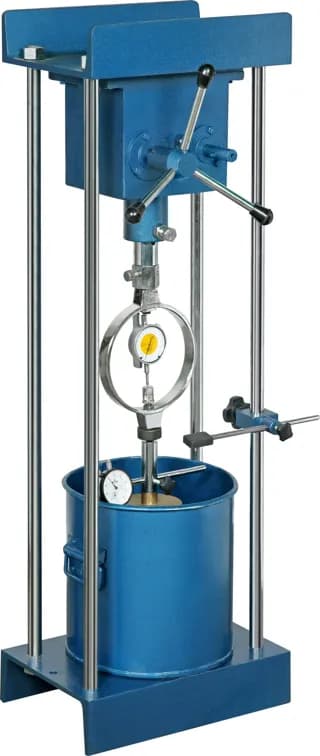

SWELL PRESSURE TEST APPARATUS - IS: 2720(Part 41)1977 / IS: 11550 (1985)
The swell pressure test apparatus for soil, as per IS: 2720 (Part 41) 1977 and IS: 11550 (1985), is designed to measure the swelling pressure exerted by expansive soils when they come into contact with water and swell under a confined state.
VAPOUR PRESSURE MOISTURE DETERMINATION APPARATUS WITH GLASS PARTS
Complete apparatus with Heating Box, digital temp. controller and glass assembly. Vacuum Pump available at extra cost.

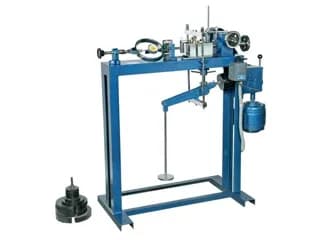

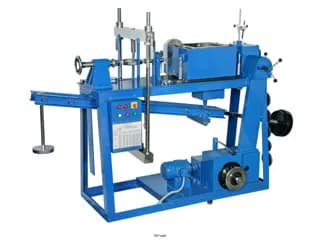

LARGE DIRECT SHEAR APPARATUS-30 KN
As per IS:2720 (Part 39)/ IS 11593. Supplied with Load Frame, shear box assembly, set of weight, High sensitivity Proving Ring for shear load measurement, capacity : 30 kN (3000 kgf), Consolidation Dial Gauge 0.01 mm x 25 mm, Strain Dial Gauge 0.01 mm x 25 mm with magnetic spacer, etc. Suitable for operation on 415 volts, 50 Hz, 3 phase, A.C. Supply.
COMPRESSION TESTING MACHINE - AUTOMATIC PACE RATE CONTROLLED
Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Automatic pace rate control, auto stop and manual release on failure of test specimen. Inbuilt pen drive slot. (saves reading in excel format) (Record date-time, Sr no and Peak load and N/mm2)

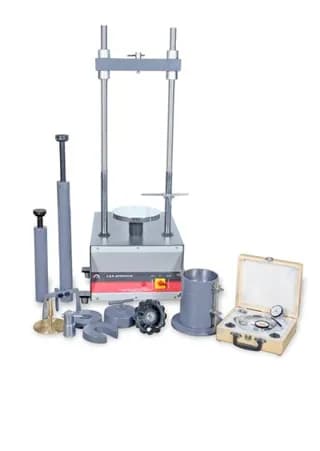

LABORATORY CBR APPARATUS - IS: 2720 (Part XVI), IS: 9669
The machine feature a rigid two column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by a mechanical jack housed in the base cabinet which also accommodates the motor and the electric panel. Complete with standard accessories as mentioned below. As per IS:2720 (Part XVI). Can also be supplied as per ASTM D1883, BS 1377-4, AASHTO T 193

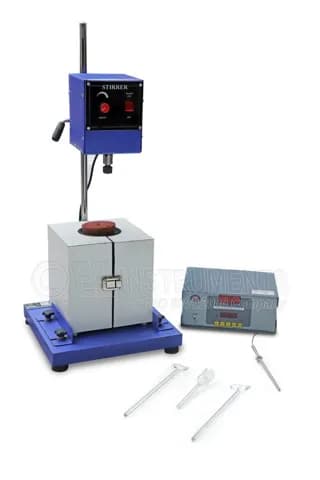

HEAT OF HYDRATION APPARATUS WITH DIGITAL THERMOMETER - IS 4031, IS 11262
Used to determine the heat of hydration of low heat Portland and hydraulic cement. The instrument is used for determining heat of hydration of cement by measuring difference between heat of solution of dry cement and heat of solution of a separate sample partially heated for 7 days & 28 days. As per IS 4031, IS 11262. Advance version with Datalogger, PC Connectivity with software and temp.resolution of 0.001°C is also available
