FIELD DENSITY TEST APPARATUS
The Sand Pouring Cylinder Apparatus, available in small, medium, and large sizes, is used to determine the in-situ density of soils by the sand replacement method, conforming to IS:2720 (Part 28). Each set is supplied with a sand pouring cylinder fitted with a conical funnel and shutter, a calibrated cylindrical container with flange, and a metal tray with a central hole, ensuring accurate and repeatable test results in field conditions.
VOLUME CHANGE GAUGE - SINGLE
The volume change gauges are designed to measure changes in volume of specimen, measured in terms of the change in the volume of the cell, during a triaxial shear test. The apparatus consists of an outer acrylic tube and an inner graduated glass burette held between two blocks. Manifolds are provided to enable water, either to pass through the tubes during measurements or to go direct to the cell when no measurements are required. As per IS 2720 (Part 12)
AUTOMATIC VOLUME CHANGE DEVICE
The apparatus is used for measuring the volume change of a soil sample by monitoring the flow of water through the chamber of the unit. The lower assembly contains changeover valves, which when used in conjunction with the upper assembly provides limitless capacity. The unit can be used with a linear strain transducer, a digital indicator, or as part of an automated system. It is accurate to better than ±0.01 ml and is easily de-aired in seconds. Includes connectors, valves, and tubing.
CHIESEL 25MM WIDE X 300MM LONG
Detailed specification as follows.
DRY ICE MAKING MACHINE - WOODEN
A small, compact, automatic machine for producing solidified carbon dioxide cakes having in built regulator. It is useful for small batch techniques of freeze drying microtome, distillation etc.
VIBRATING TABLE - 150 X 200 CM
For compaction of concrete cube, beams and cylinders. Operation on 440 V, three phase, A.C. supply.
ABRASION RESISTANCE OF CONCRETE - ASTM C1138
The underwater abrasion resistance test (ASTM C1138) evaluates the durability of concrete surfaces when exposed to hydraulic forces and suspended abrasive materials, as commonly encountered in hydraulic structures. The test quantifies the abrasion resistance by measuring the mass loss of concrete specimens subjected to a rotating propeller in water containing abrasive particles.

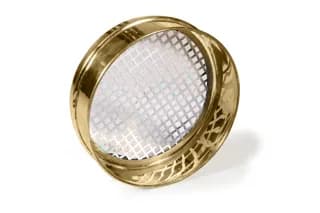

FINE SIEVE SET - 20CM DIA - SET
Seamless Brass frame, set consist of 8 sieves - 10 mm, 4.75 mm, 2.36 mm, 1.18 mm, 600 micron, 300 micron, 150 micron, 75 micron and a set of Lid‑Pan.
LABORATORY VANE SHEAR APPARATUS
Vane shear test is a useful method of measuring the shear strength of clay. It is a cheaper and quicker method. The test can be conducted in the laboratory. The laboratory vane shear test for the measurement of shear strength of cohesive soils, is useful for soils of low shear strength for which triaxial or unconfined tests can not be performed. The test gives the undrained strength of the soil. The undisturbed and remoulded strength obtained are useful for evaluating the sensitivity of soil.

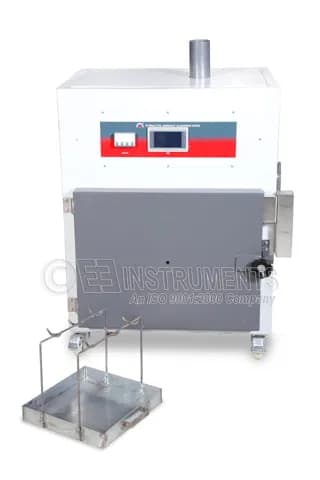

PYROLYTIC ASPHALT CLEANING OVEN
The pyrolytic oven is widely used in laboratories for solvent-free cleaning of glassware and other lab equipment. This type of oven operates by heating materials to high temperatures to burn off organic residues, including asphalt, oils, or chemical remnants, making it especially useful for delicate or intricate lab items where solvent-based cleaning might be unsuitable.
SHRINKAGE BAR MOULD
High-precision Shrinkage Bar Mould used for casting cement and aggregate specimens to determine potential expansive alkali reactivity. Made from durable mild steel with accurately machined faces, tight fittings, and a firm assembly. Available in single, two, and four-compartment models mounted on a rigid angle base plate. Supplied complete with base plate and stainless steel reference points. Standard sizes: 75×75×300 mm, 25×25×282 mm, and 75×75×285 mm.
V FUNNEL TEST APPARATUS (ACRYLIC)
The V‑ Funnel flow time is the period in which, a defined volume of SCC (self‑consolidating concrete) needs to pass through a narrow opening and gives an indication of the filing ability of SCC, provided that blocking and or segregation do not take place. The flow time of the V‑Funnel test is to some degree related to the plastic viscosity.

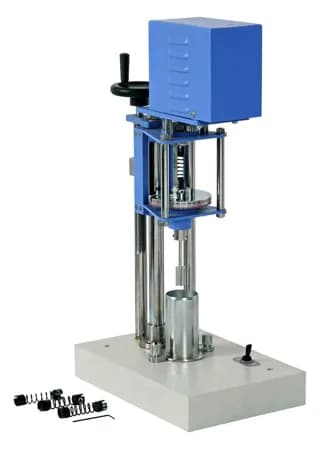

VICAT SOFTENING POINT APPARATUS
Vicat Softening Point Apparatus designed for determining the Vicat softening temperature of thermoplastic materials under specified loading and heating conditions, ensuring accurate quality control and material evaluation.
CLEVELAND FLASH POINT APPARATUS
The Cleveland flash point apparatus is a top-of-the-line flash point instrument designed to deliver accurate and reliable results for determining the flash point of various substances. This advanced flash point machine is essential for laboratories, quality control departments, and research facilities, ensuring precise measurement and compliance with safety standards.
