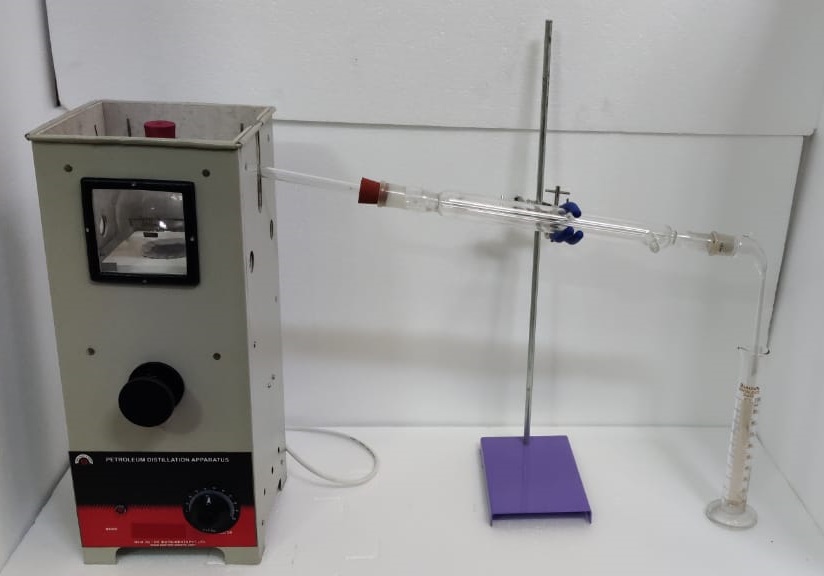

APPARATUS FOR DISTILLATION OF CUT BACK ASPHALT - WITH ENERGY REGULATOR - IS 1213 - WITH ACCESSORIES
Model Number : EIE-BT-107E
As per IP 27, IS 1213, ASTM D402 method A complete with one distillation flask of 500ml. capacity and one 100 ml. crow receiver and thermometer. Electrically heated model with Energy regulator. Detailed Specification as follows:
CONTROLLING SYSTEM
Compliance Standards:
ASTM D402, IS 1213, IP 27
Scope:
This apparatus is used for the examination of cut-back asphaltic materials by the distillation test.
Consists of following parts and accessories:
1) Distillation Flask
- Capacity : 500mL
- Type : Side-arm type having the dimensions shown in Fig. 1 of ASTM D402.
2) Condenser

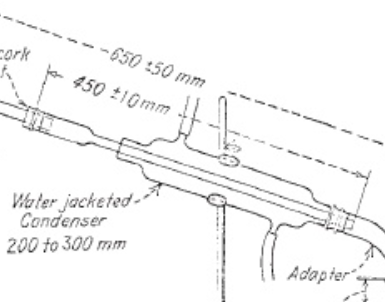

- Type : Standard glass-jacketed,
- Length : 200 to 300 mm
- Overall tube length : 450 ± 10 mm
3) Electric heater
Electric heater with Energy Regulator PT-100 Sensor.
4) Adopter
Heavy-wall (1-mm) glass, with reinforced top, having an angle of approximately 105°. The inside diameter at the large end will be approximately 18 mm, and at the small end, not less than 5 mm. The lower surface of the adapter will be on a smooth descending curve from the larger end to the smaller.
4) Shield
Lined with 3-mm fire proof insulation and fitted with transparent mica windows, of the form and dimensions shown in Fig. 2 of ASTM D402. It is used to protect the flask from air currents and to reduce radiation. The cover (top) will be made in two parts of 6.4-mm (1⁄4-in) fire proof insulation.
5) Flask and shield support
Two 15 cm2 sheets of 16-mesh Chromel wire gauze on a tripod or ring.
6) Receiver
CROW RECEIVER-100 ML-FOR DISTILLATION OF CUTBACK BITUMEN TEST-ASTM D402, IS 1213r
7) Thermometer
Glass Thermometer ASTM 8C
8) Thermometer holder
Silicon rubber stoppers
