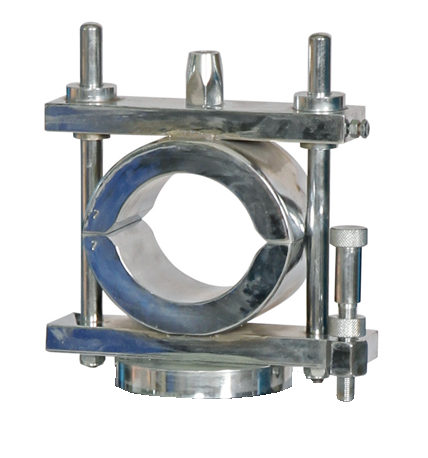

Breaking Head (Fig. 4, ASTM D5581)
- Structure: Two cylindrical segments (upper and lower).
- Inside Radius of Curvature: 3.0"(76.2 mm).
- Internal Diameter: 6.000 ± 0.010"(152.4 ± 0.25 mm).
- Segment Gap: 0.25 ± 0.01"(6.4 ± 0.3 mm) when a 4"(100 mm) metal block is inserted.
- Material: Machined steel, plated for corrosion resistance.
- Guides: Equipped with two vertical guide rods and sleeves ensuring parallel, bind-free motion.
| Overall Dimensions in Inches (L x W x H) | 10 x 9 x 12 |
|---|---|
| Weight (Approx.) | 16.550 Kg |
