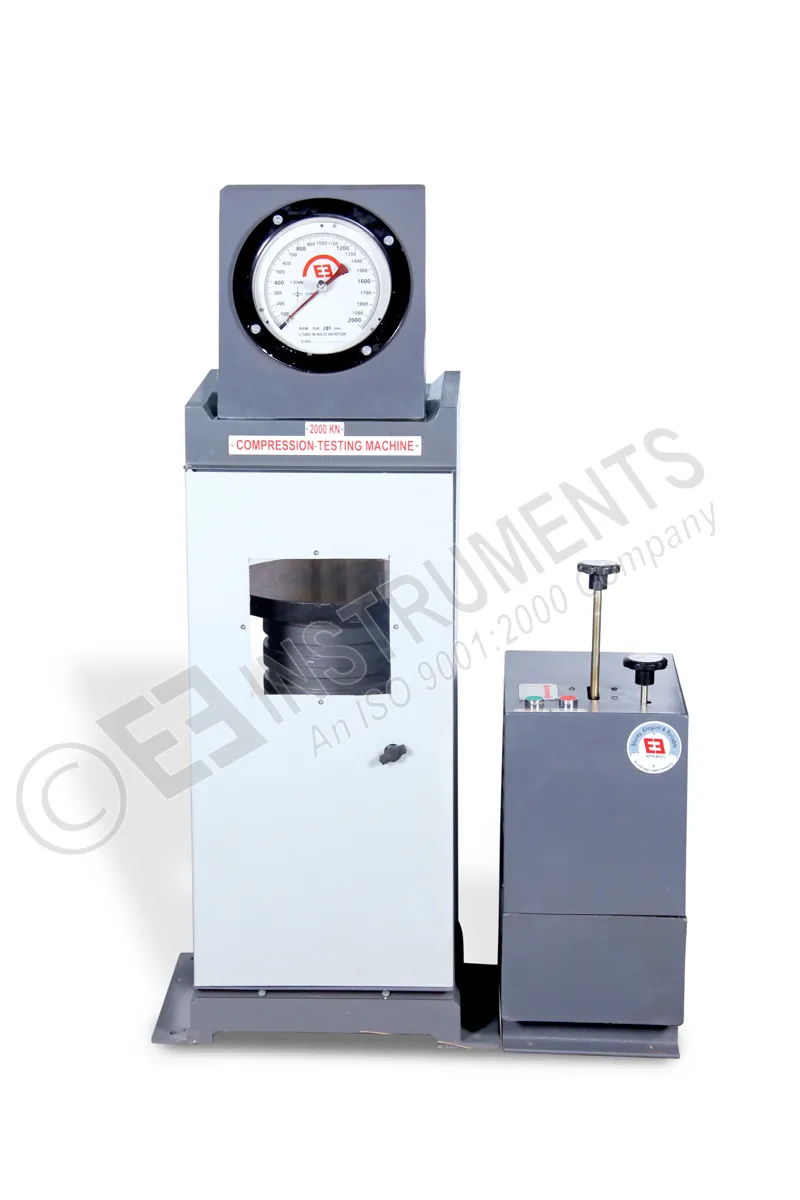

COMPRESSION TESTING MACHINE - 2000 KN-ANALOG - SINGLE GAUGE

COMPRESSION TESTING MACHINE - 2000 KN-ANALOG - SINGLE GAUGE

Model Number : TM-042A.2000.1

Compliance with following international standards - IS 516, IS 14858. Detailed specification as follows:

NUMBER OF GAUGE

Compliance with following international standards:
IS 516, IS 14858

Salient Features:
  • Aesthetically designed unit
  • The electric pumping unit is fixed with a micro? switch to switch off the motor automatically as the load on the machine approaches the rated capacity.
  • The unit is equipped with a 8" dia pressure gauges with maximum red pointer.
  • Four column high stiffness and high stability fully welded construction of the load frame.
Construction Details:
  • The compression testing machine consists of separate pumping unit and loading unit. Detailed descriptions of both the devices are narrated below.
Loading Unit:
  • The upper platen has got a self aligning action and is attached to a rigid cross head plate.
  • The lower platen rests on the jack ram and is positioned with the help of a centering pin.
  • Loading is accomplished by upward movement of lower platen.
  • A dust cover is provided on the jack to prevent any dust from going into the cylinder.
  • A spacer with a centering locating pin is provided to test small specimens.
  • The lower and upper platens of the machine are hardened ground and polished.
Pumping Unit:
  • The pumping unit is a separate unit connected to the jack by means of a high pressure hose pipe.
  • A junction box is suitably fixed to connect the motor to the mains through a push button starter.
  • Calibrated against N.P.L. Tested Master Gauge or Proving Ring.
  • A max red pointer is provided to facilitate taking readings after failure of the specimen.
  • The pressure gauge is fixed at an Angle for easy readability.
Scope of supply:
  • High strength rigid structure (Loading Frame)
  • Pumping unit (Oil source cabinet)
  • Pressure gauge
  • Pair of compression platens
  • High pressure hose pipe
