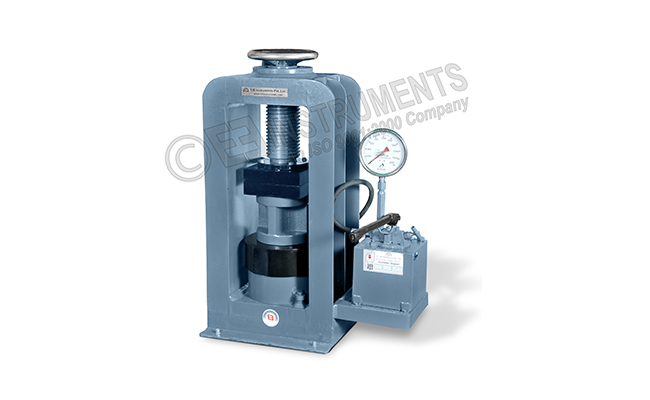

COMPRESSION TESTING MACHINE - 500 KN-HAND OPERATED

COMPRESSION TESTING MACHINE - 500 KN-HAND OPERATED

Model Number : TM-042H.500

Compression Testing Machines conform to the requirements of IS : 516 and other international standards like BS and ASTM. Detailed Specification as follows: Note: We strongly recommend using a servo voltage stabilizer to protect the Compression Testing Machine from overvoltage. The machine incorporates sensitive electronic components. Operating it without a stabilizer may cause serious damage or breakdown, which will not be covered under warranty.”

CTM CAPACITY

With Improved and Novel Pump - for easy and effortless pumping, the pump becomes more and more light as the load increases.


Application

For determination of compressive strength of cement by testing concrete cylinders, cubes. The machine works on hydraulic pressure gauge marked in 5 KN division and is fitted with maximum red pointer, in addition to the live pointer. The machines are nicely painted in hammer tone spay. Complete with pressure gauge duly calibrated.

Some of the salient features are

  1. High Stability
  2. Self-aligning platen assembly.
  3. Gauges are calibrated in Kilo Newton against certified Proving Rings.
  4. Suitable for testing cubes of various sizes
  5. Using special platens, bricks also can be tested.(Extra cost)

General Specifications

1) LOADING UNIT

The loading unit consists of a cross-head and base with solid Channel  supports connecting the base and cross-head firmly. The Hydraulic jack is fixed to the base. The platen of the machine are hardened ground and polished The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, spacer block provided.

2) PUMPING UNIT

The hydraulic pumping unit is Manually Operated  The load is measured on Bourdon tube type pressure gauge which is calibrated against certified proving rings. The pressure gauge is fitted maximum load pointer.

Note:

  1. We strongly recommend using a servo voltage stabilizer to protect the Compression Testing Machine from overvoltage. The machine incorporates sensitive electronic components. Operating it without a stabilizer may cause serious damage or breakdown, which will not be covered under warranty.”
