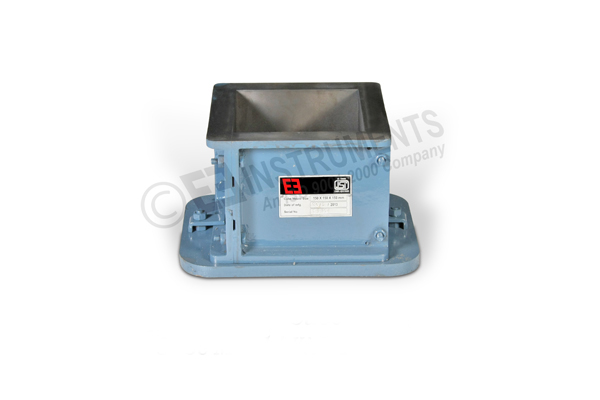

CUBE MOULD-15 CM-ISI MARKED
Model Number : TM-110-ISI
IS:10086. Weight of the mould will be about 13.5 kg. Strictly as per BIS specifications and within required tolerance.
CUBE MOULD SIZE
- 5 CM / THREE GANG
- 7.06 CM / CAST IRON
- 7.06 CM / ISI MARKED (FOR CEMENT)
- 10 CM / (2 - PART)
- 10 CM / (CAST IRON MATERIAL) - THREE GANG (ASTM C109)
- 10 CM / ISI MARKED
- 10 CM / PLASTIC
- 15 CM / (2 PARTS-/L-TYPE)
- 15 CM / 10 TO 11 KG WEIGHT
- 15 CM / ISI MARKED U
- 15 CM / PLASTIC
- 50 X 50 MM / (BRASS MATERIAL) - THREE GANG (ASTM C109)
- 50 X 50 MM / (S.S. MATERIAL) - THREE GANG (ASTM C109)
Compliance Standards:
IS 516, IS 10086 - ISI MARKED, EN 12390-1, EN 12390-3
Details:
- Made of Cast Iron, with base plate, the faces are machined flat to ± 0.02mm accuracy and finished to within ± 0.2mm of specified dimensions.
- The moulds will be stout enough to prevent distortion.
- It will be constructed in such a manner as to facilitate the removal of the molded specimen without damage and will be so machined that, when they are assembled ready for use, the dimensions and internal faces shall be accurate within the specified limits.
- Internal faces of the moulds will be smooth.
- The base plate will be attached to the mould by cleats or secured with threaded studs and nuts/wing nuts.
- Weight of the mould will be about 13.5-14.0 kg.
- Strictly as per BIS specifications and within required tolerance.
| Overall Dimensions in Inches (L x W x H) | 11X 9X 8 |
|---|---|
| Weight (Approx.) | 13.5 Kg |
