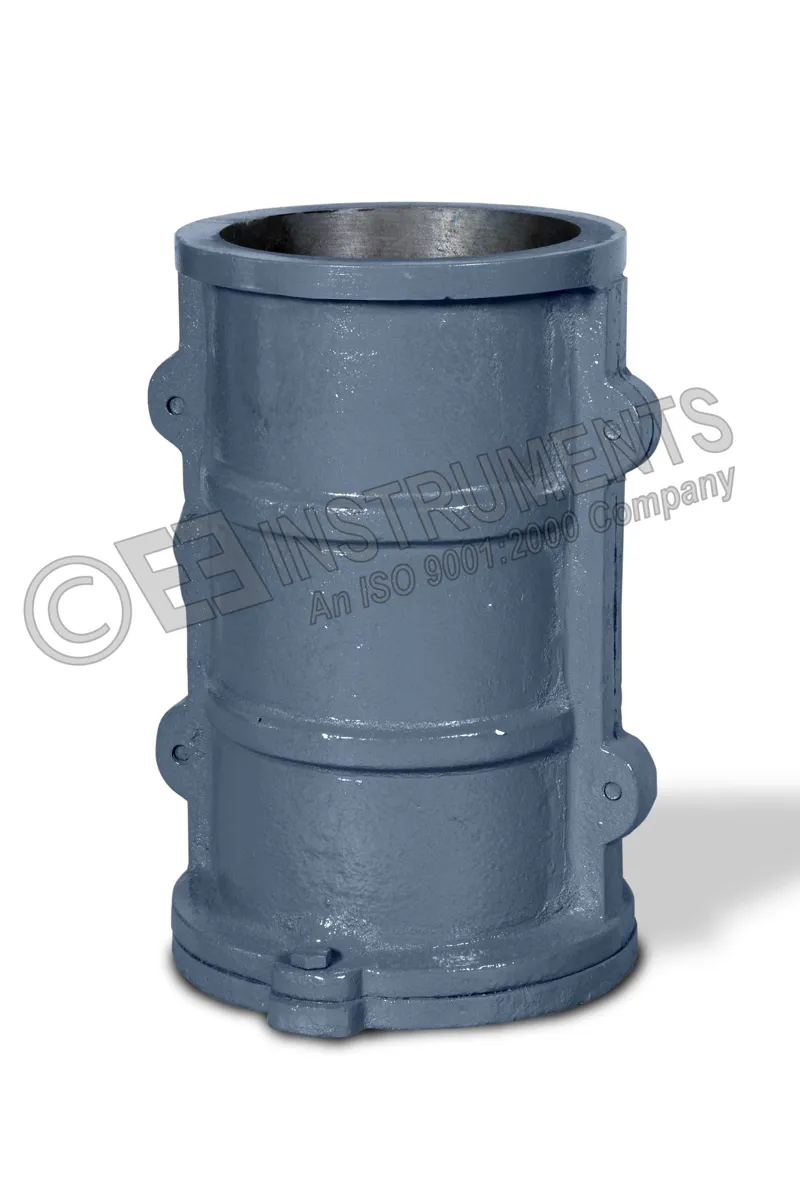

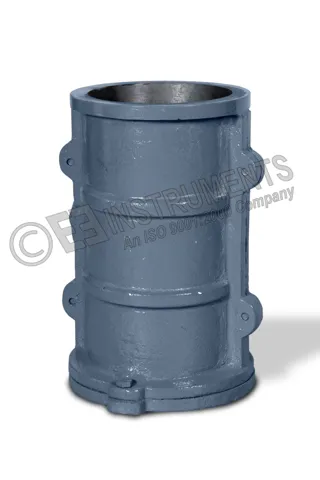

CYLINDRICAL MOULD-150 MM DIA X 300 MM HT-HEAVY

CYLINDRICAL MOULD-150 MM DIA X 300 MM HT-HEAVY

Model Number : TM-116HW

The mould is split vertically into two parts. The mean internal diameter in within ± 0.2mm and height is within ± 1mm. The ends are machined to ± 0.05 . The base plate and top plate are machined flat to ±-0.03mm. Weight : 14.5 kg approx

CYLINDRICAL MOULD SIZE

Compliance Standards

IS-10086-82


Details

  1. Cylindrical Mould, Cast Iron, Split Lengthwise 150mm dia x 300mm high,
  2. Mean internal diameter: 150± 0.2mm
  3. Actual internal diameter in any direction: 150± 0.5mm
  4. Height: 300± 1mm
  5. Permissible variation in the planeness of cylindrical wall plate:0.05mm
  6. Thickness of wall plate:6mm Diameter of base plate: 300± 3mm
  7. Diameter of capping plate: 195± 2mm Thickness of base plate/capping plate: 6mm
