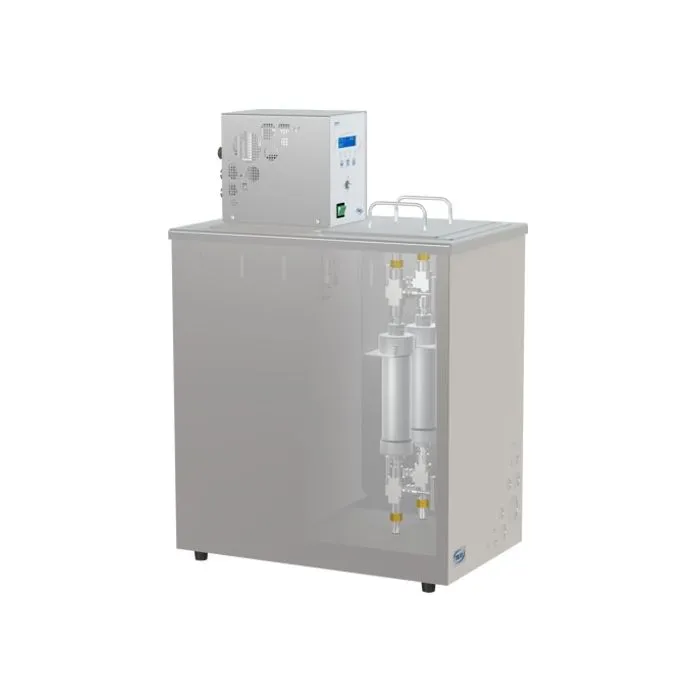

LPG COPPER STRIP CORROSION TEST APP - DIGITAL - ASTM D1838

1. Scope:

The EIE-PTLT-105E LPG Copper Corrosion Testing Bath is designed and manufactured for determining the corrosive characteristics of Liquefied Petroleum Gas (LPG) on copper strips in full compliance with ASTM D1838 (latest edition) and equivalent international standards.

2. Applicable Standards:

The equipment will be confirming to

1. ASTM D1838 – Copper Strip Corrosion by Liquefied Petroleum Gases
2. ISO 6251 – Corrosion of Liquefied Petroleum Gases
3. Institute of Petroleum IP 411 – LPG Copper Corrosion
4. Gas Processors Association GPA 2140

3. Test Method (Reference Summary):

1. A polished copper strip is immersed in an LPG sample inside a sealed pressure cylinder
2. Cylinder is maintained vertically in a temperature-controlled bath
3. Test temperature: 37.8 °C ± 0.5 °C
4. Test duration: 1 hour ± 5 minutes
5. Copper strip is visually rated against standard corrosion reference strips

4. Temperature-Controlled Bath – Technical Specifications:

1. Model : EIE-PTLT-105E
2. Bath Type : Electrically heated, thermostatically controlled liquid bath
3. Temperature Range : Ambient to 80 °C
4. Test Set Temperature : 37.8 °C (adjustable)
5. Temperature Stability :  ±0.5 °C or better
6. Controller : Digital PID / Microprocessor-based
7. Display Resolution : 0.1 °C / 0.01 °C optional
8. Bath Medium : Water / approved heat-transfer liquid
9. Bath Capacity : Approx. 30 litres
10. Test Positions : Minimum 4 LPG test cylinders
11. Temperature Uniformity : Internal circulation / baffle arrangement
12. Tank Material : Stainless Steel (SS 304)
13. Outer Body : Powder-coated MS / Stainless Steel (Optional)
14. Safety Features : Over-temperature cut-off, low liquid level protection
15. Power Supply : 220–240 V AC, 50 Hz, single phase

The accessories mentioned below are essential for the test and available at extra cost.

1. LPG Copper Corrosion Test Cylinders (At extra cost)

1. Material : Stainless Steel
2. Pressure Rating : ≥ 70 bar (1000 psi)
3. Valves : Two high-precision needle valves
4. Sealing : Leak-tight O-ring / metal seal
5. Strip Suspension : Internal hook arrangement
6. Orientation : Vertical, bath-compatible
7. Suitability : Fully compliant with ASTM D1838

2. Copper Test Strips (At extra cost)

1. Material: High-purity copper
2. Dimensions: Approx. 12.5 mm × 75 mm × 3 mm, with suspension hole
3. Finish: Supplied for polishing as per ASTM requirement

3. Surface Preparation & Polishing Accessories (At extra cost)

1. Sanding paper Silicon Carbide P220
2. Silicon carbide powder 150 mesh
3. Multistrip vise, holds up to four strips while polishing
4. Flat glass polishing plate
5. Stainless steel forceps / handling tools

4. Reference & Measurement Accessories (At extra cost)

1. Copper Strip Corrosion Rating Reference Standard
2. Digital thermometer / calibrated temperature probe
3. Digital timer / stopwatch
4. LPG-compatible inert gas (N₂) purging connection

5. Mandatory Spares & Consumables (At extra cost)

1. Replacement copper strips
2. Spare O-rings / seals for cylinders
3. Spare heating element
4. Spare temperature sensor / probe

6. Calibration & Certification

1. Equipment shall be factory calibrated, Calibration certificate traceable to national / international standards included.

7. Safety & Construction

1. Suitable for laboratory testing of pressurized and flammable LPG samples
2. All pressure components pressure-tested
3. Corrosion-resistant construction
4. Clear safety markings and operating instructions provided

8. Documentation Supplied

1. Operating & Maintenance Manual
2. Electrical Wiring Diagram
3. Calibration Certificate
4. Warranty Certificate
