FIELD DENSITY TEST APP-CORE CUTTER METHOD
Model Number : TM-027

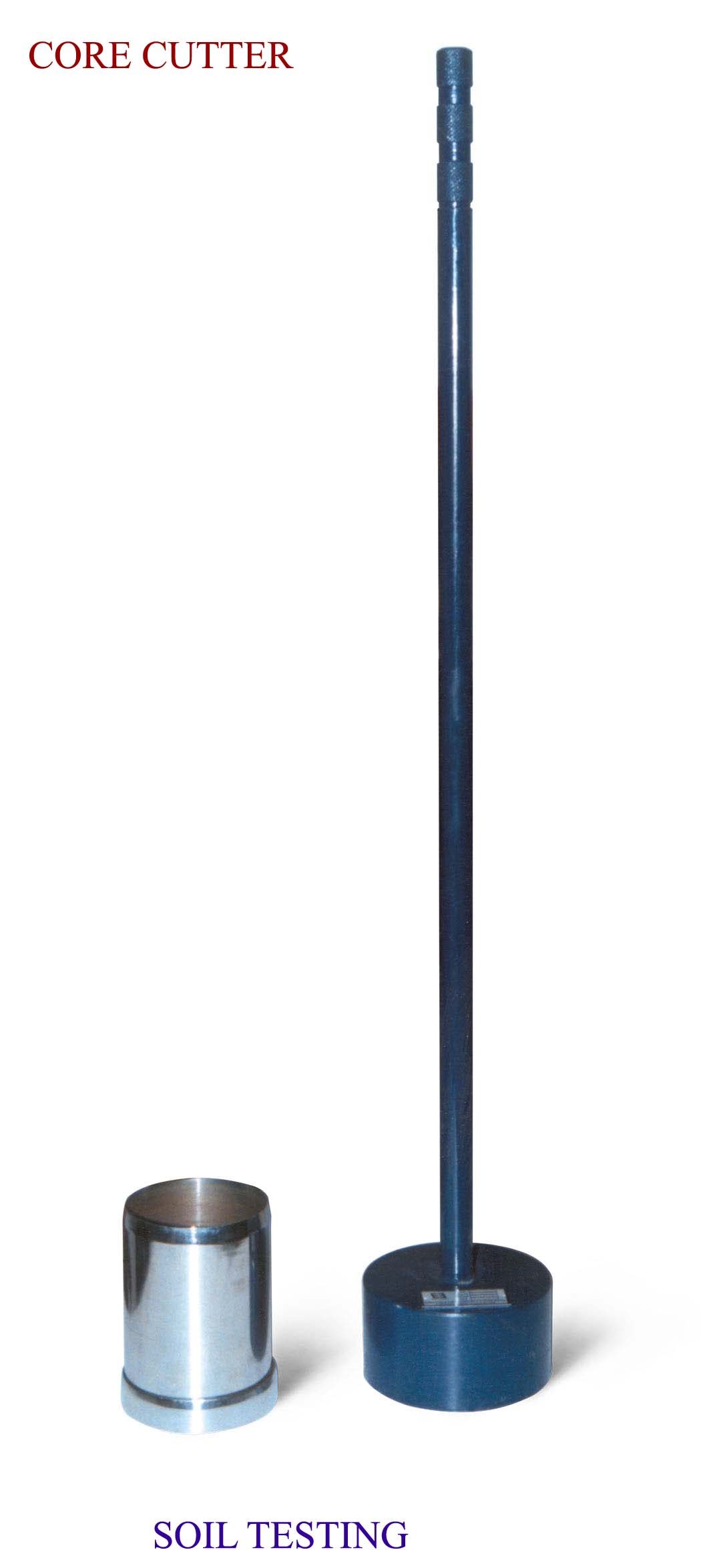

Complete with core cutter of 100 mm dia x 130 mm long with chromium plating, Dolly for 100 mm dia core cutter, and rammer with steel rod. As per IS : 2720 (P-XXIX).
FIELD DENSITY TEST APP VARIETY
Compliance Standards:
BS 1377:9, IS : 2720 (P-XXIX)
Applications:
This is used for determination of in-situ dry density of natural or compacted fine grained soil, free from aggregates. A cylindrical cutter is used to extract a sample of the soil with the help of a dolly and rammer. From the weight, density and the moisture, the dry density of the soil is readily calculated.
Details:
Complete with core cutter of 100mm dia x 130mm long with chromium plating, Dolly for 100mm dia core cutter, and rammer with steel rod. Additional accessories Viz. Electronic Weighing Balance, Palette Knife, Straight edge, spade or axe, sample extractor etc. available at extra cost
| Overall Dimensions | 150 X 150 X 960 (L X W X D) mm |
|---|---|
| Net weight (in kg) | 11.2 kg |
